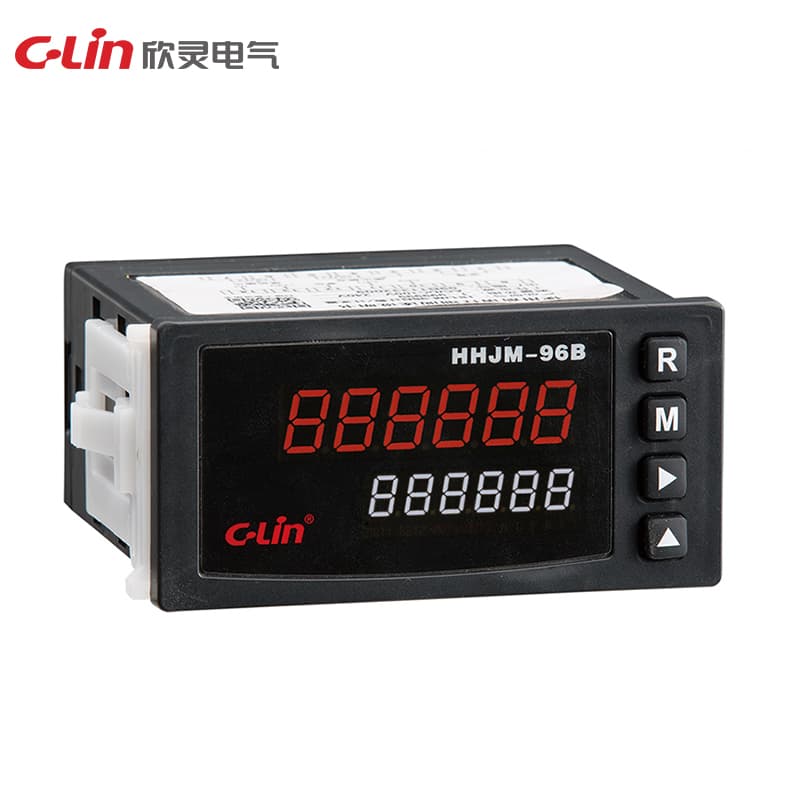

Counting Relay HHJM Series

Name: Counting Relay HHJM Series
Brand: C-Lin
SKU: HHJM-96B

Model Number: HHJM-96B

Working voltage: AC/DC24V;AC220V;AC/DC100~240V;AC380V Working mode: positive counting, reversible A, B, C Counting speed: 1, 10, 30, 300, 1000, 3000 times/second Counting range: 1~999999 Input signal: contact signal, normally open photoelectric/proximity switch, meter wheel, rotary encoder Output mode: N, C, F, R, X, T-N, T-C format Power failure memory: can be set Contact form: a group of normally open and normally closed contacts and a group of normally open contacts Dimensions: 48×48×77.5mm Opening size:

Request Quote

Technical Specifications

Ue/Ie	Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use.
Output mode	N,C,F,R,X,T-N,T-C standard
Specification	HHJM-48
Working power	AC380V,AC/DC100~240V,AC/DC24V
Counting Speed	1, 10, 30, 300, 1000 times/sec.
Counting range	1-999999
Counting Signal	Contact signal, level signal (DC5-30V), sensor signal
Output Contacts	One set of normally open and normally closed contacts and one set of normally open contacts
Rated insulation voltage Ui	400V
Conventional heating current Ith	5A
Rated impulse withstand voltage Uimp	2.5KV
