Counting Relay HHM1 Series
C-Lin

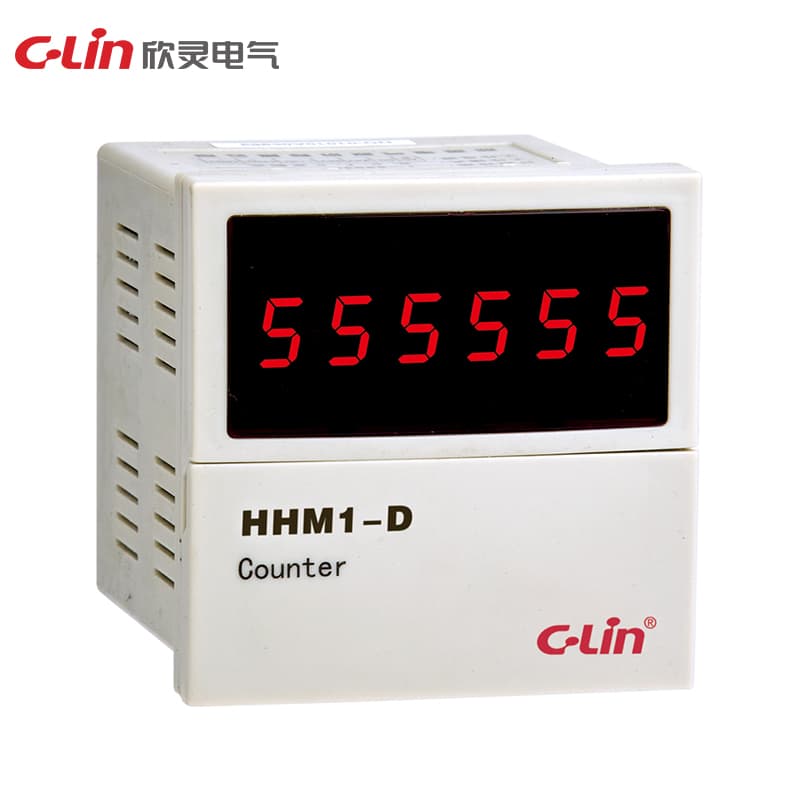

Counting Relay HHM1 Series

Model Number: HHM1-D

HHM1-AHHM1-BHHM1-DHHM1-E

Working power supply: DC24V; AC220V, AC380V Working mode: forward counting, backward counting Counting speed: high frequency 1000 times/second; low frequency 30 times/second Counting range: 1-999999 Value coefficient: 0.001-9.999 Input signal: contact signal, meter wheel, PNP normally open photoelectric switch/proximity switch Output mode: N, C, F, R, X multi-standard Power failure memory: 10 years Contact form: a group of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Di

Request Quote

Technical Specifications

Dimensions96×48×114mm
Output modeN、C、F、R、X
Contact formOne set of normally open and normally closed contacts
Input signalContact signal, metre wheel, PNP normally open photoelectric switch/proximity switch
Installationpanel mounted
SpecificationHHM1-A
Counting Range1-999999
Counting speedHigh frequency 1000 times/second; Low frequency 30 times/second
Operating ModeForward Count, Reverse Count
Blackout memory10 years
Operating powerDC24V；AC220V、AC380V
Contact capacity3A AC250V (resistive)
Temperature range-5°-40°C
Opening dimensions92×45mm
Coefficient of measurement0.001-9.999
