C-Lin

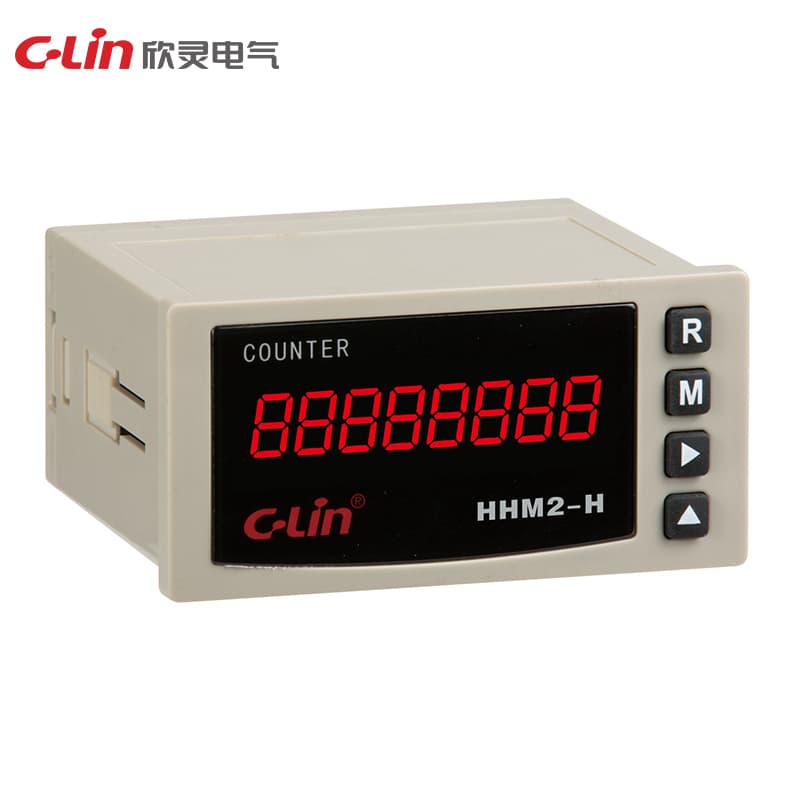

Counting Relay HHM2 Series
Model Number: HHM2-H
Working power supply: DC24V; AC220V, AC380V Working mode: reversible B counting, reversible C counting Counting speed: high frequency 5000 times/second; low frequency 30 times/second Counting range: 1-99999999 Value coefficient: 0.001-9.9999 Input signal: rotary encoder, meter wheel, PNP normally open photoelectric switch/proximity switch Output mode: N, C, F, R, X standard Power failure memory: 10 years Contact form: a group of normally open and normally closed contacts Dimensions: 96×48×114mm Opening size
Request QuoteTechnical Specifications
| Dimensions | 96×48×114mm |
| Output mode | N、C、F、R、X |
| Contact form | One set of normally open and normally closed contacts |
| Input signal | Rotary encoders, metre wheels, PNP normally open photoelectric switches / proximity switches |
| Installation | panel mounted |
| Specification | HHM2-H |
| Counting Range | 1-99999999 |
| Counting speed | High frequency 5000 times/second; Low frequency 30 times/second |
| Operating Mode | Reversible B Count, Reversible C Count |
| Blackout memory | 10 years |
| Operating power | DC24V；AC220V、AC380V |
| Contact capacity | 3A AC250V (resistive) |
| Temperature range | -5°-40°C |
| Opening dimensions | 92×45mm |
| Coefficient of measurement | 0.001-9.9999 |
