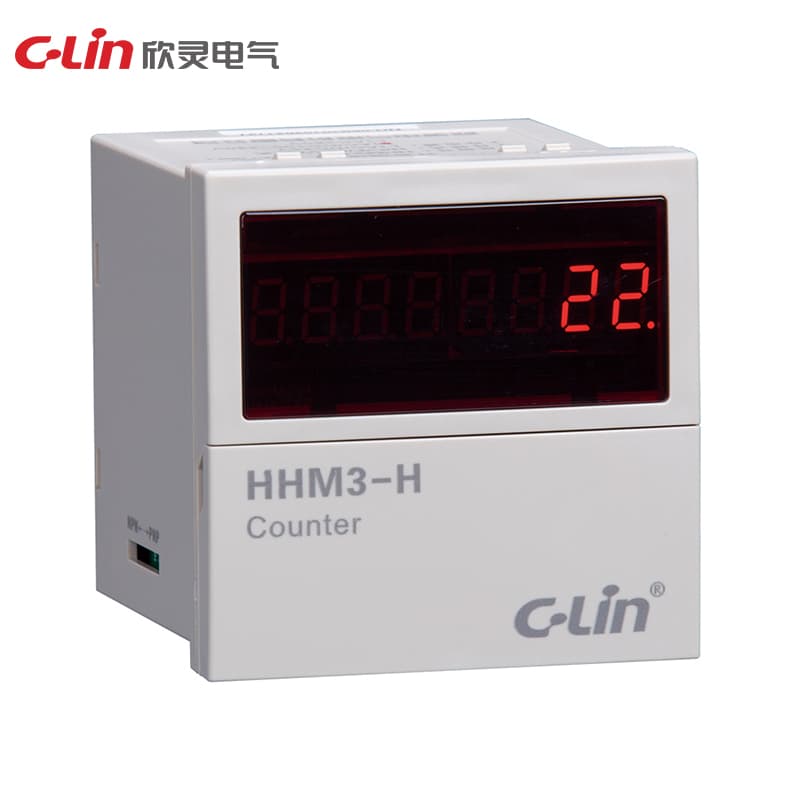

Counting Relay HHM3 Series
Model Number: HHM3-H
Working power supply: AC/DC24V;AC220V;AC/DC100-240V;AC380V Working mode: reversible B counting, reversible C counting Counting speed: high frequency 5000 times/second; low frequency 30 times/second Counting range: 1-99999999 Value coefficient: 0.001-9.9999 Input signal: rotary encoder, meter wheel, PNP normally open photoelectric switch/proximity switch Output mode: N, C, F, X, R, T multi-standard Power failure memory: 10 years Contact form: a group of normally open and normally closed contacts, and a group
Request QuoteTechnical Specifications
| Dimensions | 72×72×81mm |
| Output mode | N、C、F 、X、R、T |
| Contact form | One set of normally open and normally closed contacts, and one set of normally open contacts |
| Input signal | Rotary encoders, metre wheels, PNP normally open photoelectric switches / proximity switches |
| Installation | Panel mounted |
| Specification | HHM3-H |
| Counting Range | 1-99999999 |
| Counting speed | High frequency 5000 times/second; Low frequency 30 times/second |
| Operating Mode | Reversible B Count, Reversible C Count |
| Blackout memory | 10 years |
| Operating power | AC/DC24V;AC220V;AC/DC100-240V;AC380V |
| Temperature range | -5°-40°C |
| Opening dimensions | 68×68mm |
| Coefficient of measurement | 0.001-9.9999 |
