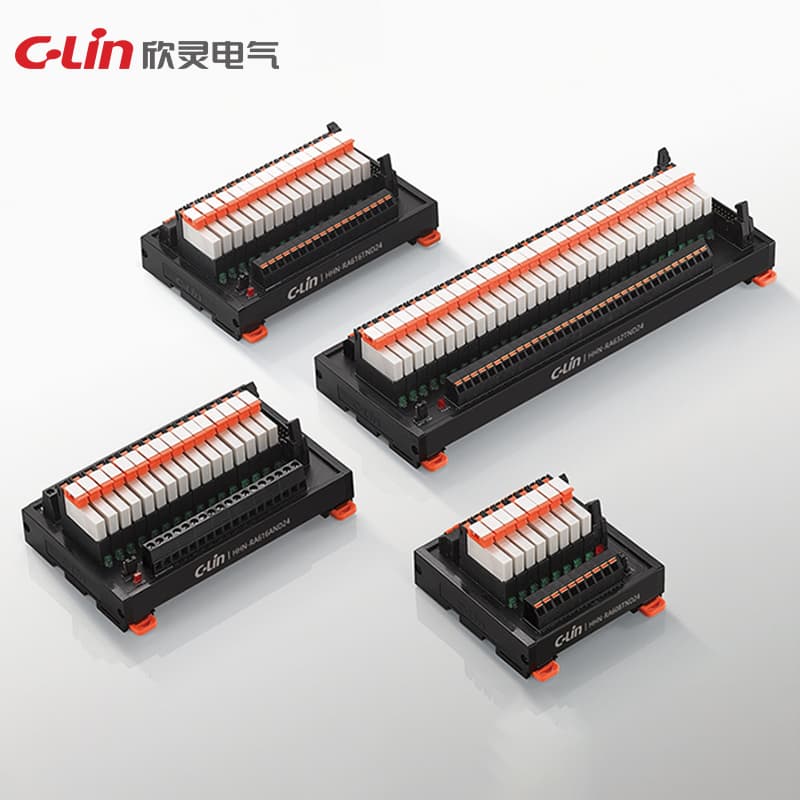

Signal Relay Module HHN-RA Series
Model Number: HHN-RA67
Contact resistance: 100mΩ or less Action time (timeliness): 10ms or less (about 3ms) Reset time (timeliness): 15ms or less (about 4ms) Insulation resistance: 100mΩ or more (DC500V megohmmeter) Impact durability: 1000m/s2 Impact malfunction: 100m/s2 Mechanical life: 50 million times or more (switching frequency 18000 times/h) Electrical life: 100,000 times or more (rated load, switching frequency 1800 times/h)
Request QuoteTechnical Specifications
| Model | HHN-RA67 |
| Shock | Duration 1000m/s² Misoperation 100m/s² |
| Contact | 1 CO |
| Relay model | 41F |
| Contact type | RA6: 1H; RA7: 1Z |
| Minimum load | 100mA / 12V |
| Release time | <3.0ms |
| Rated current | 6A/circuit |
| Rated voltage | 24VDC (with permissible variation range of 80%~110% ) |
| Surge current | 15A / 2.5ms |
| Operation time | <6ms |
| Electrical life | ≥ 100000 times (rated load, switching frequency 1800 times/h) |
| Mechanical life | ≥ 500000 times (switching frequency 18000 times/h) |
| Release voltage | ≤ 5% (normal temperature environment) |
| Operating voltage | 0.8~1.25Un |
| Switching current | 6A 250V AC |
| Contact resistance | 100mΩ or less |
| Delay/release time | 7 / 15ms |
| Switching Capacity | DC-1 30V: 180W; AC-1 230V: 1500VA; DC-15 230V: 300VA |
| nsulation impedance | 1000mΩ(500VDC) |
| Insulation resistance | 100mΩ or above (DC500V megohmmeter) |
| Number of control channels | 4, 8, 12, 16 |
| Reset time (effectiveness) | 15ms or less (approx. 4ms) |
| Operation time (effectiveness) | 10ms or less (approx. 3ms) |
| Polarity requirement for wiring | No polarity requirement |
| Single circuit operating power consumption | Approx. 216mW |
