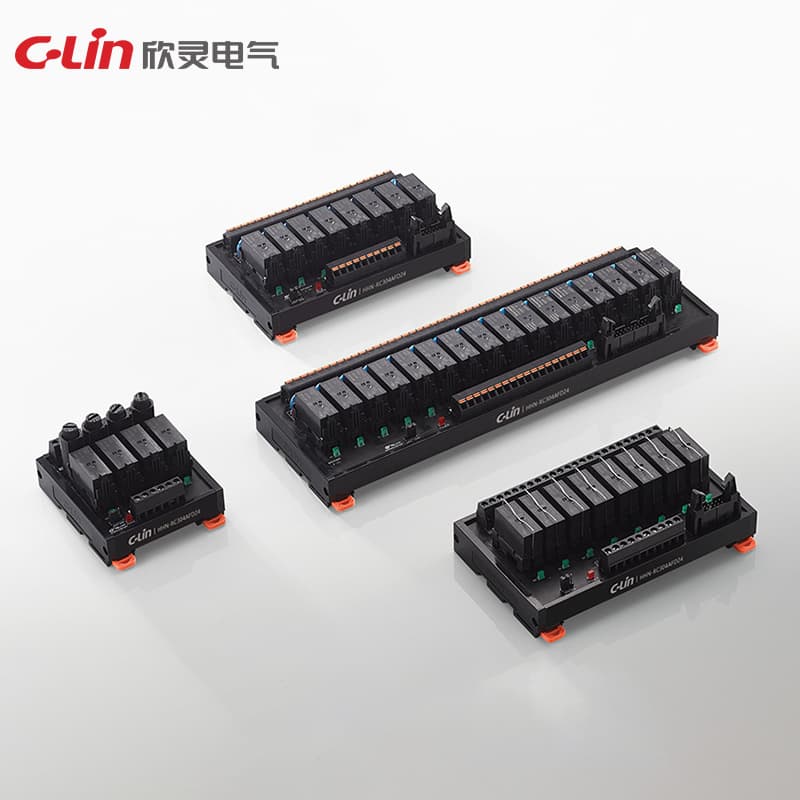

Power Relay Module HHN-RC Series
C-Lin

Power Relay Module HHN-RC Series

Model Number: HHN-RC3478

HHN-RC1256HHN-RC3478

Drive mode: NPN/PNP compatible Rated voltage: 5VDC, 12VDC, 24VDC, 36VDC Single-channel rated power consumption: DC: 0.53W AC: 1.0VA Action voltage: rated voltage × 70% Release voltage: rated voltage × 10% Action time: ≤15ms Release time: ≤10ms Contact type: 1Z NO: 16A 250VAC/30VDC; 2Z: 10A 250VAC/30VDC Electrical life: 1×10 5 Mechanical life: 1×10 7 Contact material: silver alloy Contact resistance: ≤100mΩ (6VDC 1A) Protection circuit: RC, varistor, fuse optional

Request Quote

Technical Specifications

ModelHHN-RC3478
Drive modeNPN/PNP compatible
Contact type1Z NO: 16A 250VAC/30VDC； 2Z: 10A 250VAC/30VDC
Release time≤ 10ms
Rated voltage5VDC, 12VDC, 24VDC, 36VDC
Operation time≤ 15ms
Electrical life1×10⁵
Mechanical life1×10⁷
Release voltageRated voltage ×10%
Contact materialSilver alloy
Operating voltageRated voltage ×70%
Contact resistance≤ 100mΩ(6VDC 1A)
Protection circuitRC, varistor, fuse optional
Single circuit rated power consumptionDC: 0.53W AC: 1.0VA
