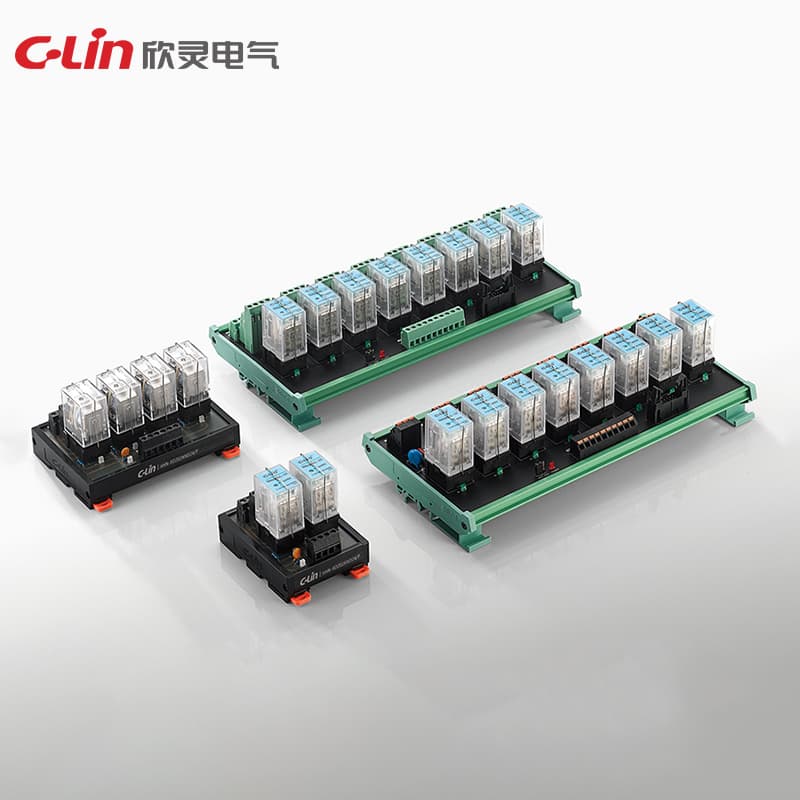

Power Relay Module HHN-RD Series
Model Number: HHN-RD
Model: HHN-RD1,2,3,4,5,6,7,8 Contact structure: 2Z; 3Z; 4Z Contact resistance (initial): ≤100mΩ Contact material: silver alloy Rated control capacity (resistance load): 6.5A (HHN68B), 10A (HHN68BVL), 12A (HHN68AVL) 5A 240VAC 28VDC (HHN68B, HHN68BVL) Contact maximum allowable voltage: 240VAC 28VDC Insulation resistance (initial): 1000mΩ (500VDC) Coil temperature rise (at 70℃): ≤85K Action time (at 20℃): ≤20ms Reset time (at 20℃): ≤15ms (DC type), ≤25ms (AC type) Mechanical life: ≥107 (frequency 300 times/min
Request QuoteTechnical Specifications
| Model | HHN-RD |
| Mechanical life | ≥ 10⁷ (frequency 300 times/min) |
| Contact material | Silver alloy |
| Rated voltage (V) | DC12V |
| Contact composition | 2Z; 3Z; 4Z |
| Reset time (at 20°C ) | ≤ 15ms (DC type), ≤ 25ms (AC type) |
| Rated current ±10% (MA) | 75 |
| Coil resistance ±10% (Ω) | 160 |
| Operation time (at 20°C ) | ≤ 20ms |
| Maximum pull-on voltage (V) | ≤ 75% |
| Maximum release voltage (M) | ≥ 10% |
| Rated power consumption (W) | 0.9W |
| Contact resistance (initial) | ≤ 100mΩ |
| Maximum allowable voltage (V) | Rated voltage ×110% |
| Insulation resistance (initial) | 1000mΩ (500VDC) |
| Maximum allowable voltage of contact | 240VAC 28VDC |
| Coil temperature rise value (at 70°C) | ≤ 85K |
| Rated control capacity (resistive load) | 6.5A(HHN68B), 10A(HHN68BVL),12A(HHN68AVL) 5A 240VAC 28VDC(HHN68B,HHN68BVL) |
| Electrical life (at rated control capacity) | ≥ 10⁵ (frequency 1s on, 1s off) |
