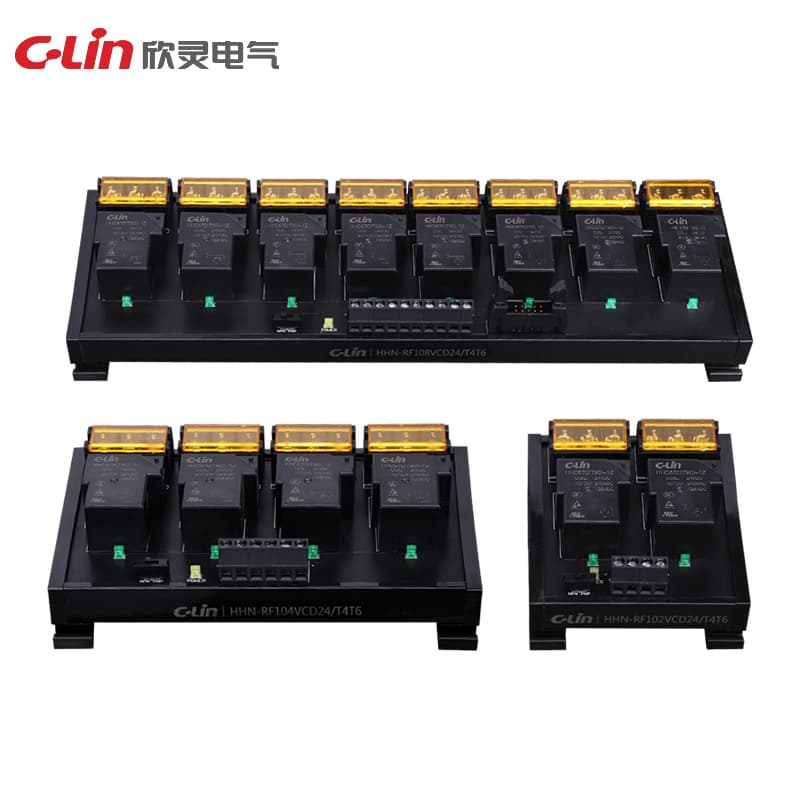

Power Relay Module HHN-RF Series
Model Number: HHN-RF
Drive mode: NPN/PNP compatible Rated voltage: 12VDC/24VDC/220VAC Single-channel rated power consumption: DC: 0.93W Action voltage: rated voltage X80% Release voltage: rated voltage X10% Action time: ≤10ms Release time: ≤15ms Contact type: 30A 40A 250VAC/30VDC Electrical life: 1×10 5 Mechanical life: 1×10 7 Contact material: silver alloy Contact resistance: ≤100mΩ (6VDC 1A) Protection circuit: RC, varistor, fuse optional
Request QuoteTechnical Specifications
| Model | HHN-RF |
| Drive mode | NPN/PNP compatible |
| Action time | ≤ 10ms |
| Contact type | 30A 40A 250VAC/30VDC |
| Release time | ≤ 15ms |
| Rated voltage | 12VDC/24VDC/220VAC |
| Electrical life | 1×10⁵ |
| Mechanical life | 1×10⁷ |
| Release voltage | Rated voltage ×10% |
| Contact material | Silver alloy |
| Operating voltage | Rated voltage ×80% |
| Contact resistance | ≤ 100mΩ(6VDC 1A) |
| Protection circuit | RC, varistor, fuse optional |
| Single circuit rated power consumption | DC: 0.93W |
