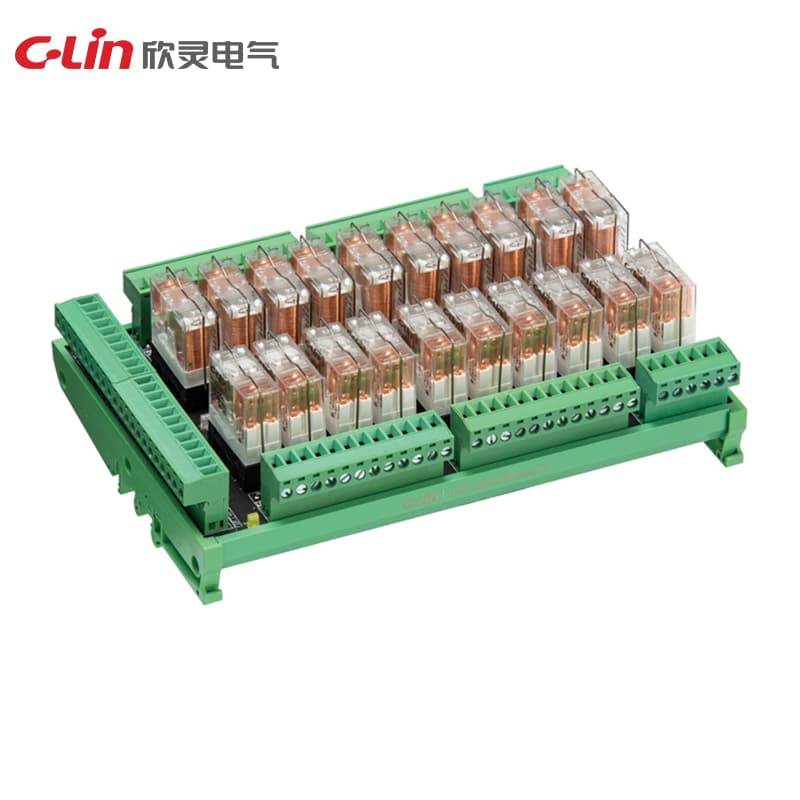

Power Relay Module HHN-RH Series
Model Number: HHN-RH
Drive mode: NPN/PNP compatible Rated voltage: 12VDC/24VDC/220VAC Single-channel rated power consumption: DC: 0.53W AC: 1.0VA Action voltage: rated voltage X70% Release voltage: rated voltage X10% Action time: ≤15ms Release time: ≤10ms Contact type: 1Z: 16A 15A 250VAC/30VDC 2Z: 10A 8A 250VAC/30VDC Electrical life: 1×10 5 Mechanical life: 1×10 7 Contact material: silver alloy Contact resistance: ≤100mΩ (6VDC 1A) Protection circuit: RC, varistor, fuse optional
Request QuoteTechnical Specifications
| Model | HHN-RH |
| Drive mode | NPN/PNP compatible |
| Action time | ≤ 10ms |
| Contact type | 1Z: 16A 15A 250VAC/30VDC 2Z: 10A 8A 250VAC/30VDC |
| Release time | ≤ 15ms |
| Rated voltage | 12VDC/24VDC/220VAC |
| Electrical life | 1×10⁵ |
| Mechanical life | 1×10⁷ |
| Release voltage | Rated voltage ×10% |
| Contact material | Silver alloy |
| Operating voltage | Rated voltage ×70% |
| Contact resistance | ≤ 100mΩ(6VDC 1A) |
| Protection circuit | RC, varistor, fuse optional |
| Single circuit rated power consumption | DC:0.93W AC:1.0VA |
