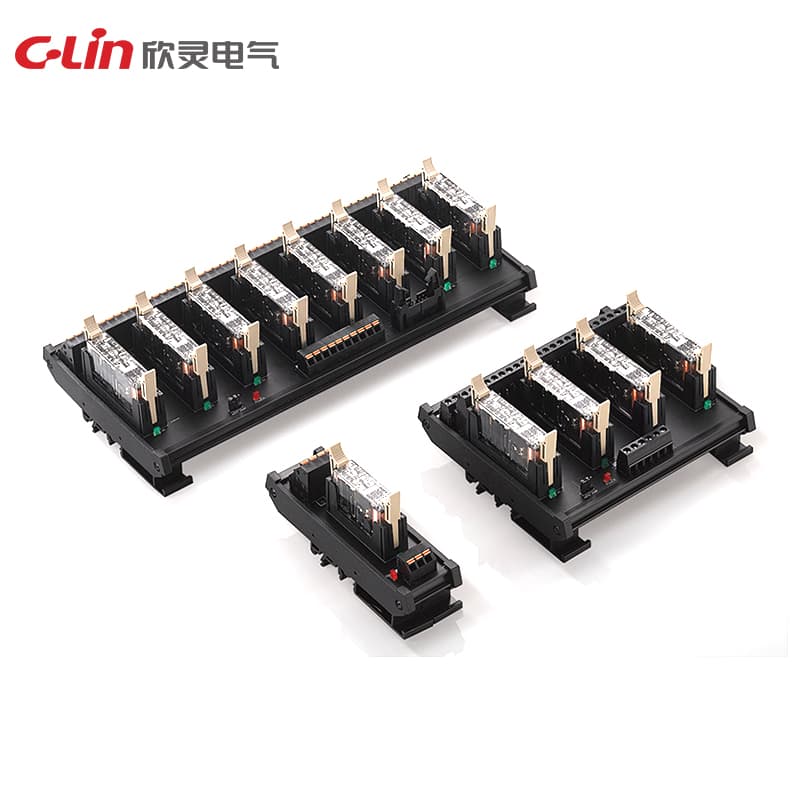

Safety Relay Module HHN-RQ Series
Model Number: HHN-RQ
Drive mode: NPN/PNP compatible Rated voltage: DC12V; DC18V; DC21V; DC24V; DC48V; DC100V 4-pole rated current (mA): 30; 20; 17.1; 15; 7.5; 3.8 4-pole power consumption (mW): about 360; about 420 6-pole rated current (mA): 41.7; 27.8; 23.8; 20.8; 10.4; 5.3 6-pole power consumption (mW): about 500; about; 580 Action voltage: about 75% relative to the rated voltage Release voltage: about 10% relative to the rated voltage Action time: ≤ 20ms Release time: ≤ 10ms Resistance load: AC250V 6A; DC30V 6A Inductive loa
Request QuoteTechnical Specifications
| Model | HHN-RQ |
| Drive mode | NPN/PNP compatible |
| Release time | ≤ 10ms |
| Rated voltage | DC12V |
| Operation time | ≤ 20ms |
| Resistive load | AC250V 6A; DC30V 6A |
| Electrical life | ≥ 100000 times (rated load) |
| Mechanical life | ≥ 10 million times |
| Release voltage | Around 10% of rated voltage |
| Contact material | Silver alloy |
| Operating voltage | Around 75% of rated voltage |
| Contact resistance | ≤ 100mΩ |
| 4P rated current (mA) | 30 |
| 6P rated current (mA) | 41.7 |
| 4P power consumption (mW) | About 360 |
| 6P power consumption (mW) | About 500 |
| Maximum switching frequency | Mechanical 36000 times/h Rated load 1800 times/h |
| Inductive load switch performance | AC15V AC240V 2A; DC13V DC24V 1A; DC48V 0.5A; DC110V 0.2A |
