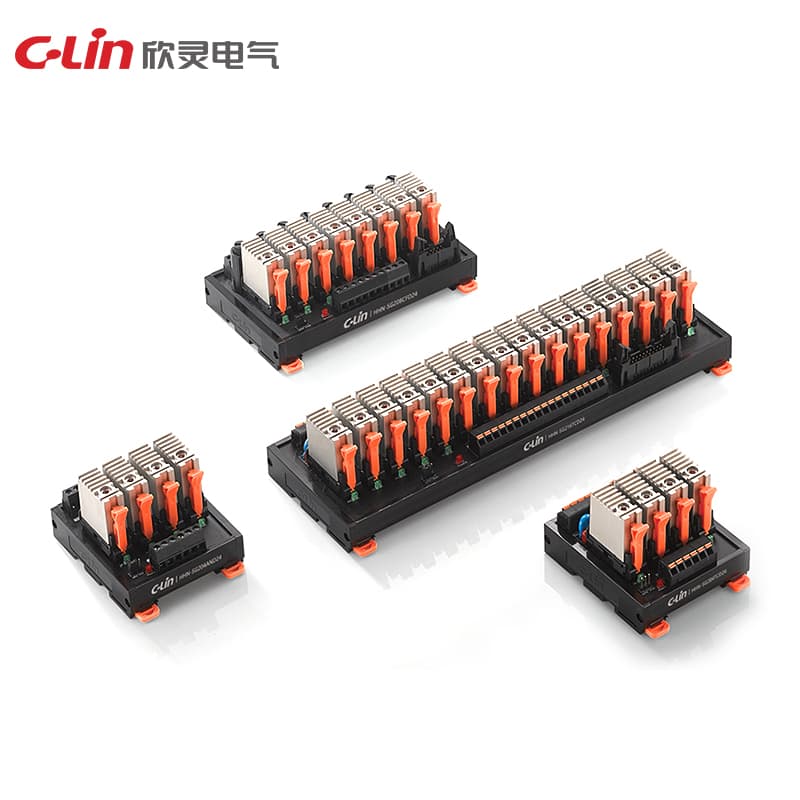

Solid-State Relay Module HHN-SG Series
Model Number: HHN-SG2
Product model: HHN-SG101□□D24/DA; HHN-SG101□□D24 Action time: 1/2 cycle of load power supply + 1ms or less; 1ms or less Reset time: 1/2 cycle of load power supply + 1ms or less; 1ms or less Insulation resistance: 100MΩ or more (500V megohmmeter) Control voltage: 3-32VDC Control current: 5-20mA Load voltage: 24-240VAC 24-440VAC 5-60VDC Load current: 1A 2A On-state voltage drop: DC≤1.2V AC≤1.6V Off-state leakage current: DC≤5mA AC≤10mA Dielectric withstand voltage: ≥1500VAC Isolation withstand voltage: AC2500
Request QuoteTechnical Specifications
| Model | HHN-SG2 |
| Reset time | 1/2 cycle of load power supply+1ms or less |
| Wiring type | European type terminal, spring leaf type direct plug-in terminal, MIL connector |
| Load current | 1A, 2A |
| Load voltage | 24-240VAC 24-440VAC 5-60VDC |
| Peak voltage | 900V 400V |
| Surge current | ≤ 10ms for 60A, ≤ 10ms for 30A |
| Operation time | 1/2 cycle of load power supply+1ms or less |
| Control current | 5-20mA |
| Control voltage | 3-32VDC |
| Wiring polarity | No polarity requirement (NPN/PNP double polarity compatible) |
| Dielectric strength | ≥ 1500VAC |
| Insulation resistance | 100MΩ or above (500V megohmmeter) |
| On-state voltage drop | DC ≤ 1.2V AC ≤ 1.6V |
| Rated operating current | 5-25mA |
| Rated operating voltage | 3-32VDC |
| Off-state leakage current | DC ≤ 5mA AC ≤ 10mA |
| Number of control channels | 2, 4, 8, 10, 12, 16, 32 |
| Isolation withstand voltage | AC2500V 50/60Hz 1 min |
