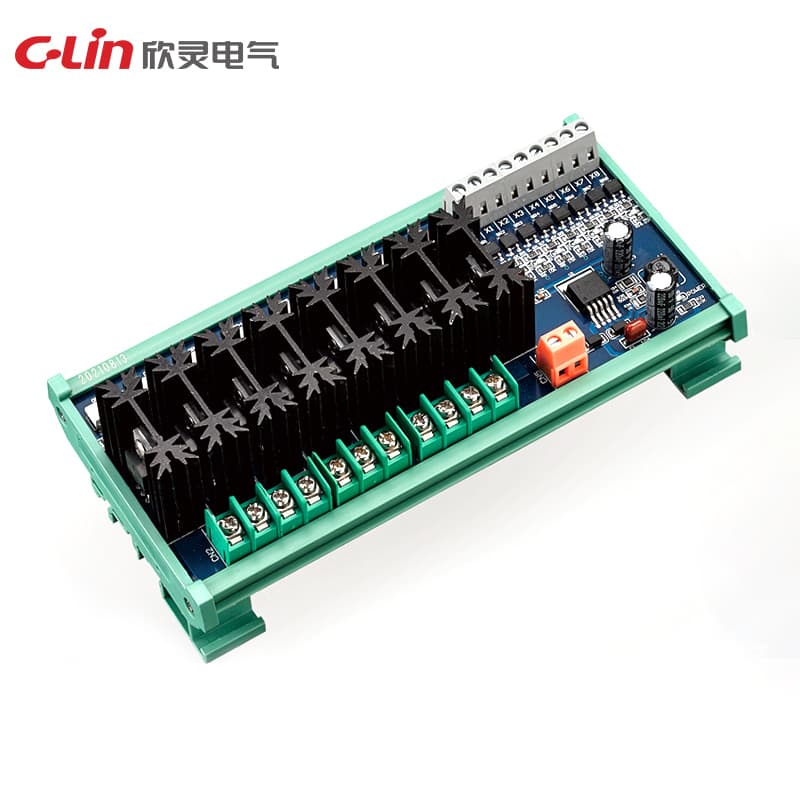

Amplification Type Relay Module HHN-SL Series
Model Number: HHN-SL3
Control components: Original imported MOS tube Input voltage: 24V (default 24V, control range 3V~24V, please specify if other is required) Input signal: Compatible with NPN (input OV signal is valid) and PNP (input 24V signal is valid) Installation method: Standard rail installation (can be installed on NS35/7.5 or NS32 guide groove) Load current (each channel): resistive load ≤ 3A (instantaneous 8A, can be customized); Inductive load ≤ 2A (instantaneous 8A, can be customized) Input minimum drive current: ≥
Request QuoteTechnical Specifications
| Input form | Compatible with PNP or NPN (positive and negative control compatible) |
| Output form | Low level output (OV) |
| Contact form | Contactless |
| Input signal | Compatible with NPN (valid OV input signal) and PNP (valid 24V input signal) |
| Load current | Long term 6A |
| Service life | ≥ 100 million times (1 million hours for driving tube) |
| Input voltage | 24V (default 24V, control range 3V~24V, please specify if other requirements are needed) |
| Mechanical life | ≥ 100 million times |
| Control component | Original imported MOS transistor |
| Circuit insulation | Optocoupler isolation |
| Input response time | ≥ 0.2ms |
| Installation method | Standard DIN rail installation (can be installed on NS35/7.5 or NS32 guide slot) |
| Switching frequency | ≤ 50K |
| Short circuit protection | 10A |
| Load current (per circuit) | Resistive load ≤ 3A (instant 8A, customizable); inductive load ≤ 2A (instant 8A, customizable) |
| Input minimum driving current | ≥ 15mA |
