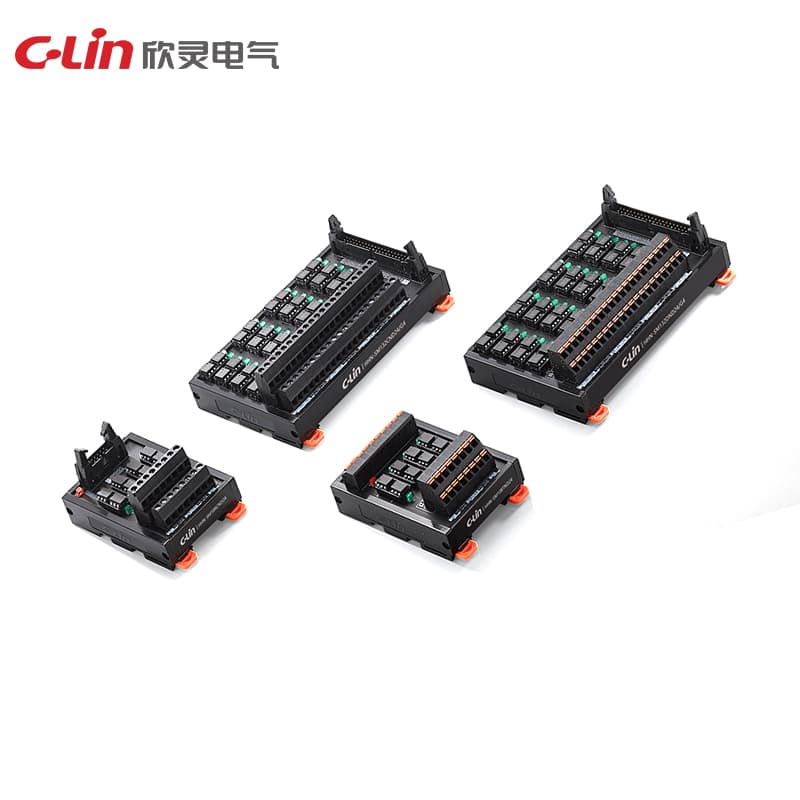

Optical MOS Relay Module HHN-SM Series

Name: Optical MOS Relay Module HHN-SM Series
Brand: C-Lin
SKU: HHN-SM

Model Number: HHN-SM

Rated working voltage: 5VDC, 12VDC, 24VDC Rated working current: 5mA Wiring polarity: with polarity (pay attention to the wiring order) Load current: 1A; 2A; 3A; 4A; 5A Load voltage: 60VDC; 100VDC; 100VDC; 60VDC; 30VDC Surge current: 1A; 2A; 3A; 4A; 5A Maximum operating frequency: 200HZ Maximum voltage drop (-40~100%℃): 0~0.8V Peak voltage: 2500V Number of control channels: 4, 8, 16, 32 Insulation resistance: 100MΩ (500VDC) On time (10~90%): 0.5ms Off time (10~90%): 0.03ms Isolation withstand voltage: 3750V

Request Quote

Technical Specifications

Model	HHN-SM
Load current	1A
Load voltage	60VDC
Peak voltage	2500V
Surge current	1A
Wiring polarity	With polarity (pay attention to the wiring sequence)
Off time (10~90%)	0.03ms
Insulation resistance	100MΩ (500VDC)
Rated operating current	5mA
Rated operating voltage	5VDC, 12VDC, 24VDC
Conduction time (10~90%)	0.5ms
Maximum working frequency	1kHz
Number of control channels	4, 8, 16, 32
Isolation withstand voltage	3750Vrms
Maximum voltage drop (-40~100°C)	0~0.8V
