C-Lin

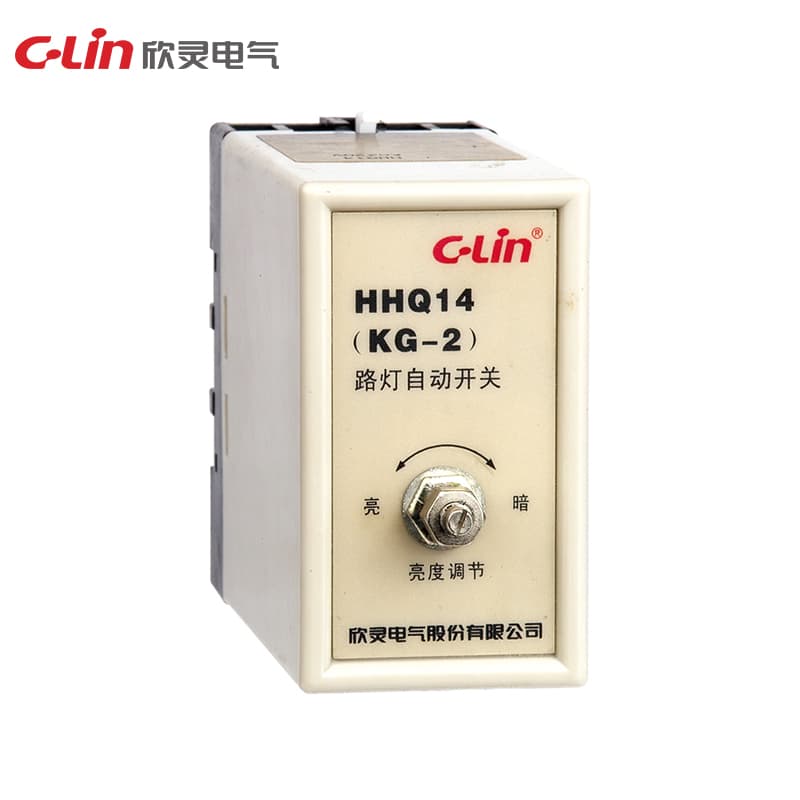

Automatic Street Light Switch HHQ14 Series

Name: Automatic Street Light Switch HHQ14 Series
Brand: C-Lin
SKU: HHQ14

Model Number: HHQ14

Working power supply: AC220V 50Hz Control mode: open at night, close at dawn; sensitivity can be adjusted Wiring length: ≤100 meters (light control element) Active output: 6-pin, 5-pin output Contact capacity: 3A AC250V (resistive) Dimensions: 42×75×116mm Installation method: device type and 35mm guide rail type Light control probe opening size: Φ16±0.2mm

Request Quote

Technical Specifications

Dimension	42×75×116mm
Contact Form	3A AC250V (resistive)
Control Mode	On at dark, off at dawn; adjustable sensitivity
Installation	Device type and 35mm rail type
Active output	6-pin, 5-pin outputs
Optical Probe	Φ16±0.2mm
Working Power	AC220V 50Hz
Speicification	HHQ14(KG-2)
