C-Lin

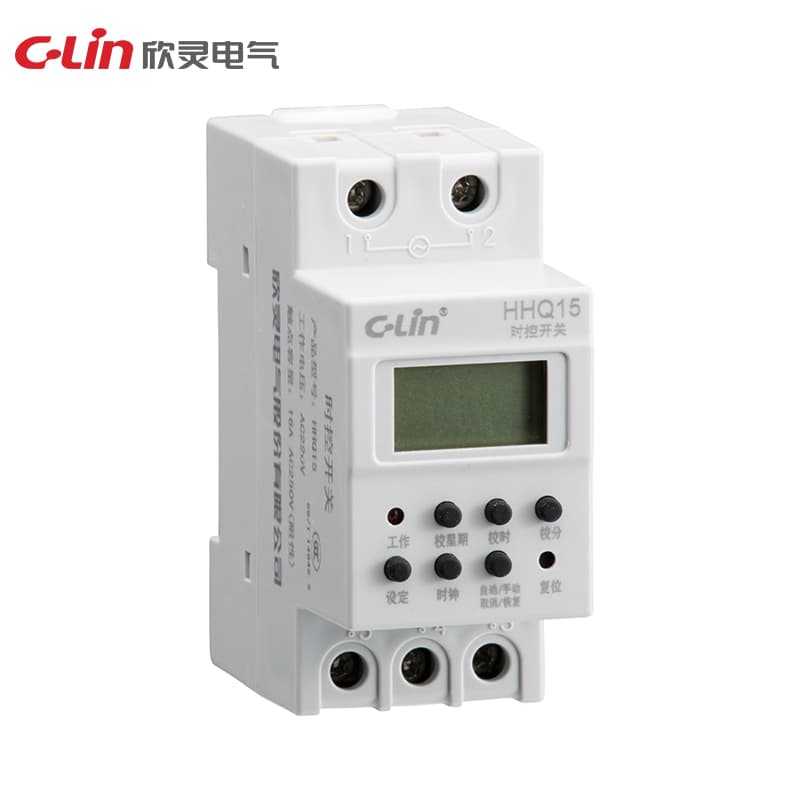

Time Controller HHQ15 Series

Name: Time Controller HHQ15 Series
Brand: C-Lin
SKU: HHQ15

Model Number: HHQ15

Working power supply: AC220V 50Hz Time control range: 1 minute ~ 168 hours Timing error: ≤ ± 1 second / day Contact capacity: 16A AC250V (resistive) Programmable number: 16 sets of switch programming per day Battery: built-in high-energy lithium battery Dimensions: 36×78×68.5mm Installation method: 35mm rail type

Request Quote

Technical Specifications

Battery	Built-in high-energy lithium battery
Dimensions	36 x 78 x 68.5mm
Contact Form	16A AC250V (resistive)
Installation	35mm rail type
Timing error	≤±1s/day
Control Range	1m to 168h
Working Power	AC220V 50Hz
Speicification	HHQ15
Programmable number	16 groups of switches programmed per day
