Time Control Switch HHQ4 Series
C-Lin

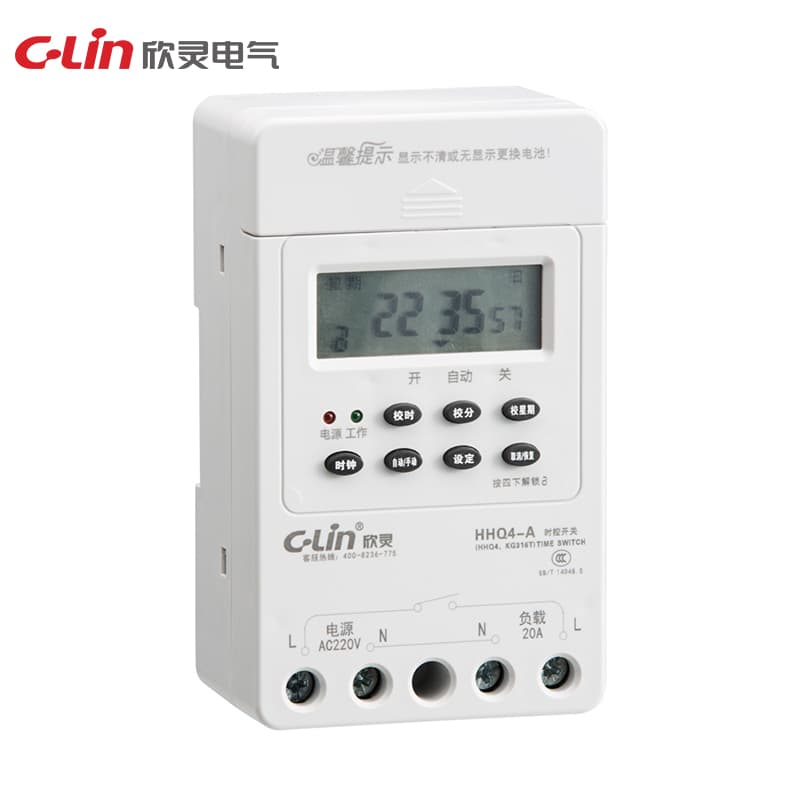

Time Control Switch HHQ4 Series

Model Number: HHQ4-A

HHQ4-AHHQ4-DHHQ4-GHHQ4-J

Working power supply: AC220V 50Hz Time control range: 1 minute ~ 168 hours Timing error: ≤ ±1 second / day Contact capacity: 20A AC250V (resistive) Number of programmable: 16 sets of switch programming per day (with keyboard lock) Battery: one 1.5V No. 7 battery (external) Dimensions: 72×120×48mm Installation method: device type, guide rail type, wall-mounted

Request Quote

Technical Specifications

Battery1.5V seven batteries (external)
InstallationDevice-type, rail-type, wall-mounting type
Timing error≤1s/day
Working mode–
SpecificationHHQ4-A
Contact capacity20A  AC250V(resistive)
Overall dimensions72×120×48mm
Time control range1m-168h
Programmable number16 groups of switches programmed daily (with keypad lock)
Working power supplyAC220V 50Hz
