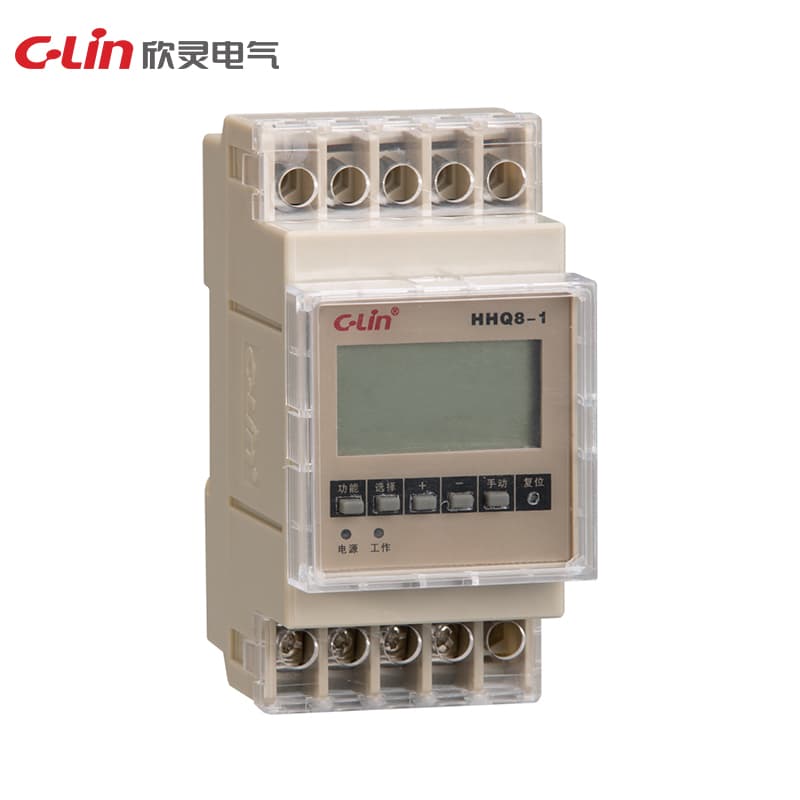

Multi-circuit Time Controller HHQ8 Series
Model Number: HHQ8-2
Working power supply: AC220V 50Hz Time control range: 1 minute ~ 168 hours Timing error: ≤ ± 1 second / day Programmable number: HHQ8-1 is 40 groups of switch programming HHQ8-2 is 40 groups of switch programming Output: HHQ8-1 is 1 output; HHQ8-2 is 2 outputs Contact capacity: HHQ8-1 is 16A AC250V (resistive) HHQ8-2 is 3A AC250V (resistive) Battery: built-in high-energy lithium battery Dimensions: 49.5×100×74mm Installation method: 35mm rail type
Request QuoteTechnical Specifications
| Diemnsions | 49.5×100×74mm |
| Contact Form | HHQ8-1 for 16A AC250V (resistive) |
| Installation | 35mm rail mounted |
| Timing error | ≤±1 s/day |
| Working Power | AC220V 50Hz |
| Speicification | HHQ8-1 |
| Programmable number | Programmed for 40 groups of switches |
| Duration of bell ringing | 1m to 168h |
