C-Lin

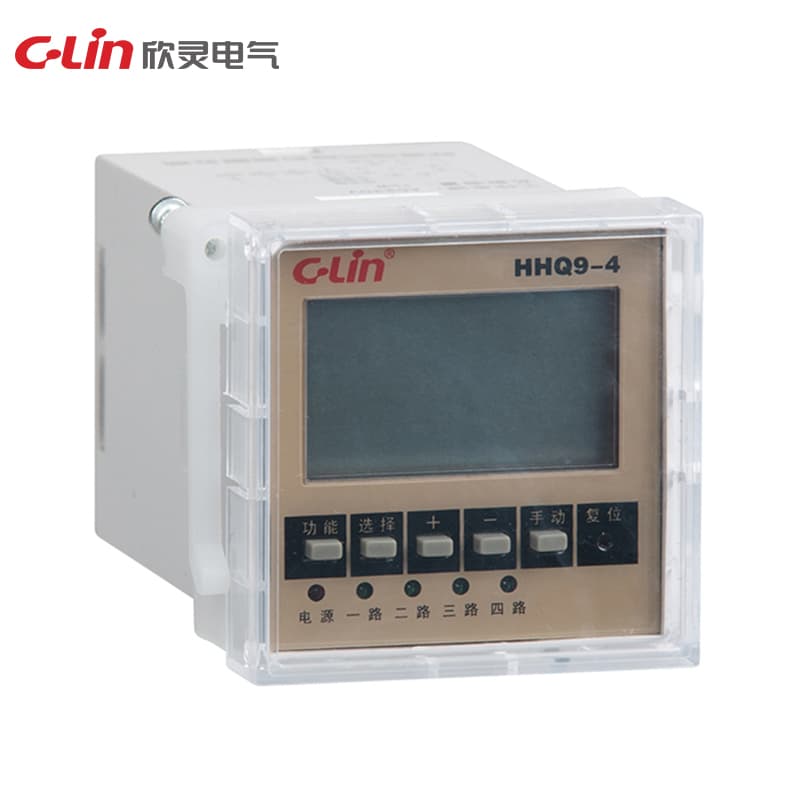

Multi-circuit Time Controller HHQ9 Series

Name: Multi-circuit Time Controller HHQ9 Series
Brand: C-Lin
SKU: HHQ9-4

Model Number: HHQ9-4

Working power supply: AC220V 50Hz Time control range: 1 minute ~ 168 hours Timing error: ≤ ± 1 second / day Programmable number: HHQ9-1 is 40 groups of switch programming HHQ9-2 is 40 groups of switch programming Output: HHQ9-1 is 1 output; HHQ9-2 is 2 outputs Contact capacity: HHQ9-1 is 16A AC250V (resistive) HHQ9-2 is 3A AC250V (resistive) Battery: built-in high-energy lithium battery Dimensions: 51×51×108mm Opening size: 45×45mm Installation method: panel type, device type, 35mm rail type

Request Quote

Technical Specifications

Output	HHQ9-1 is a 1-channel output; HHQ9-2 is a 2-channel output.
Dimensions	51×51×108mm
Contact Form	HHQ9-1 for 16A AC250V (resistive)
Installation	Panel type, Device type, 35mm rail type
Opening size	45 x 45mm
Timing error	≤±1 s/day
Working Power	AC220V 50Hz
Speicification	HHQ9-1
Programmable number	Programmed for 40 groups of switches.
Duration of bell ringing	1m to 168h
