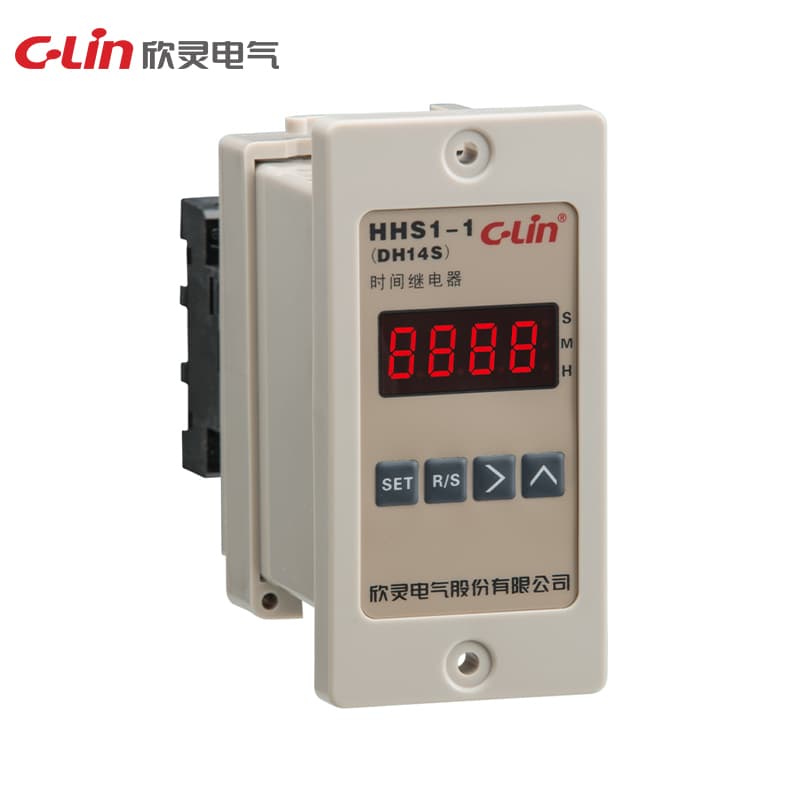

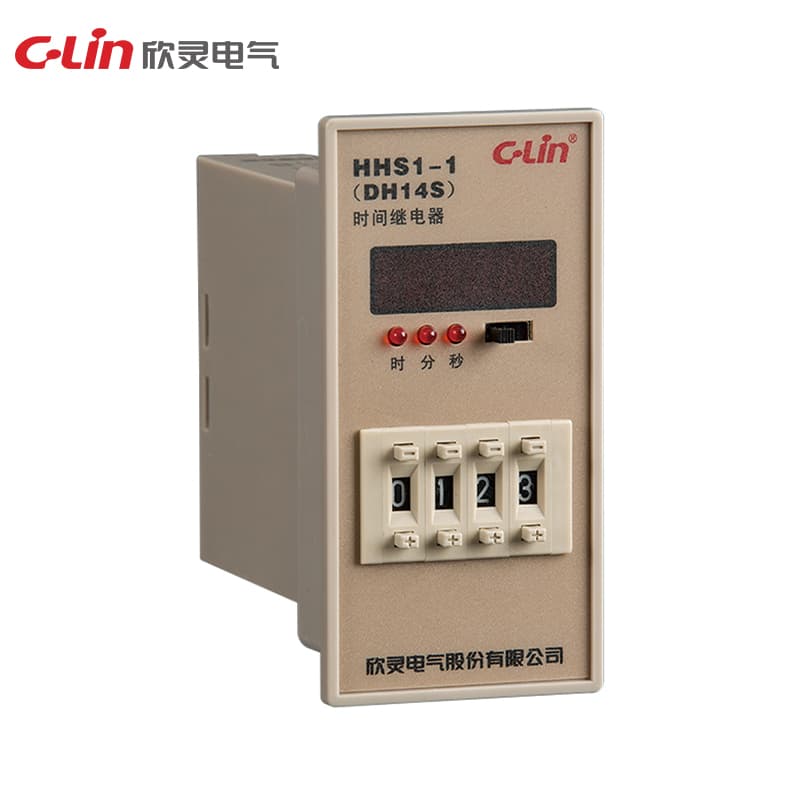

Time Relay HHS1 Series
Model Number: HHS1-1
HHS1HHS1-1
Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 0.01s~99h99m hours, minutes, seconds setting Repeat error: ≤ 1% Working mode: power-on delay Timing method: countdown, digital tube display Contact form: two sets of delay with reset pause Contact capacity: 3A AC250V (resistive) Installation method: panel type
Request QuoteTechnical Specifications
| Altitude | ≤2000m |
| Dimension | 52×104×114mm |
| Dimensions | 52×104×99mm |
| Delay range | 0.01s~99h99m |
| Timing mode | Positive timing, digital tube display |
| Contact form | Two sets of delay with reset pause function |
| Installation | Panel type |
| Opening size | 45×77mm |
| Working Mode | Power-on delay |
| Specification | HHS1（JS14S) |
| Operating power | DC24V;AC24V,AC220V,AC380V |
| Contact capacity | 3A AC250V (resistive) |
| Repetition error | ≤ 1% |
| Installation mode | Panel type |
| Temperature range | -5°-40°C |
| Rated Supply Voltage | AC220V |
