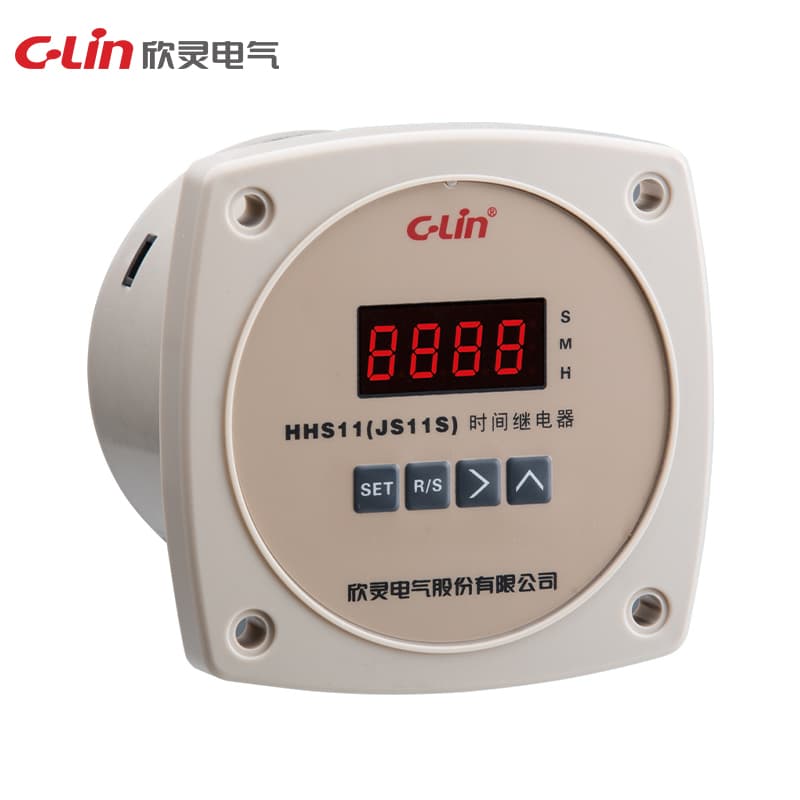

Time Relay HHS11 Series

Name: Time Relay HHS11 Series
Brand: C-Lin
SKU: HHS11

Model Number: HHS11

Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 0.01~99h99m hours, minutes and seconds setting Repeat error: ≤1% Working mode: power-on delay Timing method: countdown, digital tube display Contact form: two groups of delay and one group of instantaneous contacts Contact capacity: 3A AC250V (resistive) Dimensions: 95×95×101mm Opening size: 4- Φ5/70×70mm Φ81.2mm Installation method: panel type

Request Quote

Technical Specifications

Ui	400V
Ith	5A
Uimp	2.5KV
Ue/Ui	Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Altitude	≤2000m
Humidity	The relative humidity of the air shall be ≤50 per cent at a maximum temperature of 40°C at the place of installation, and higher relative humidity may be permitted at lower temperatures, e.g. up to 90 per cent at 20°C. Special measures should be taken for occasional condensation due to temperature changes.
Delay range	0.01s~99.99s、1s~99m59s、1m~99h99m
Contact form	1 set of momentary changeover contacts and 2 sets of delayed changeover contacts
Installation	Panel type
Working Mode	Power-on delay
Specification	HHS11
Operating power	DC24V;AC24V,AC36V,AC110V,AC220V,AC380V
Contact capacity	3A AC250V (resistive)
Repetition error	Er<1% for delay range >1s; Er<50ms for delay range <1s
Temperature range	-5°-40°C
