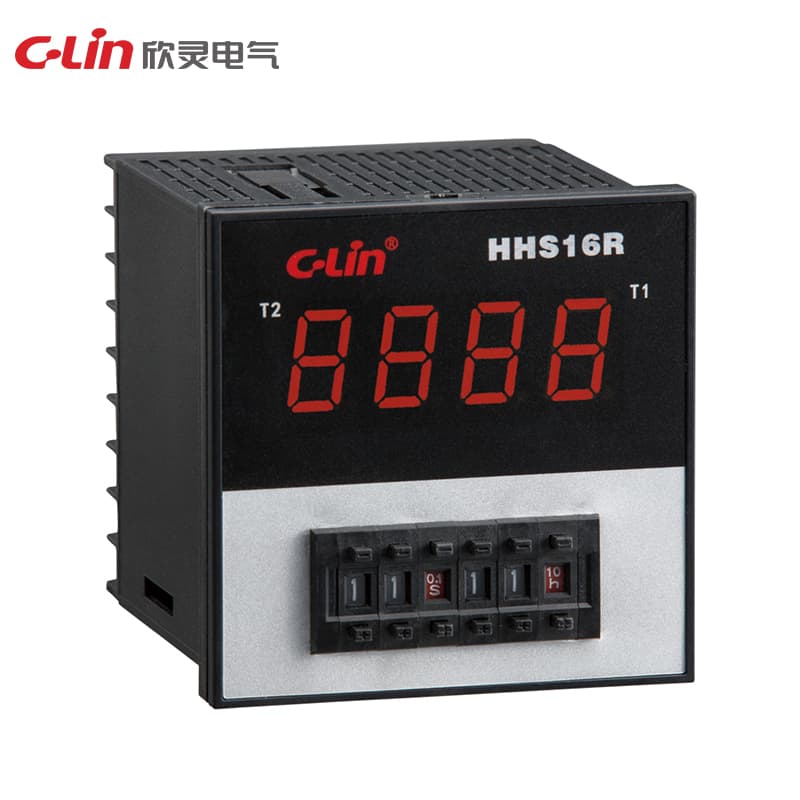

Multi-circuti Time Relay HHS16 Series

Name: Multi-circuti Time Relay HHS16 Series
Brand: C-Lin
SKU: HHS16R

Model Number: HHS16R

Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 0.01s-99990h, 10 time bases are available Repeat error: ≤1% Working mode: power-on delay Timing method: positive timing, digital tube display Contact form: HHS16B: two groups of delay with reset and pause function HHS16B-C: one group of delay and one group of instantaneous with reset and pause function Contact capacity: 3A AC250V (resistive) Dimensions: 72×72×83mm Opening size: 68×68mm Installation method: panel type

Request Quote

Technical Specifications

Ui	400V
Ith	5A
Uimp	2.5KV
Ue/Ui	Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Altitude	≤2000m
Humidity	The relative humidity of the air shall be ≤50 per cent at a maximum temperature of 40°C at the place of installation, and higher relative humidity may be permitted at lower temperatures, e.g. up to 90 per cent at 20°C. Special measures should be taken for occasional condensation due to temperature changes.
Delay range	0.01s-99990h
Contact form	HHS16B:Two sets of time delay HHS16B(transient):one set of transient, one set of time delay.
Installation	Panel mount
Working Mode	Power-on delay
Specification	HHS16B
Operating power	DC24V;AC24V,AC26V,AC110V,AC220V,AC380V 50Hz
Contact capacity	3A AC250V (resistive)
Repetition error	Er≤1% for delay range >1s; Er<50ms for delay range <1s
Temperature range	-5°-40°C
