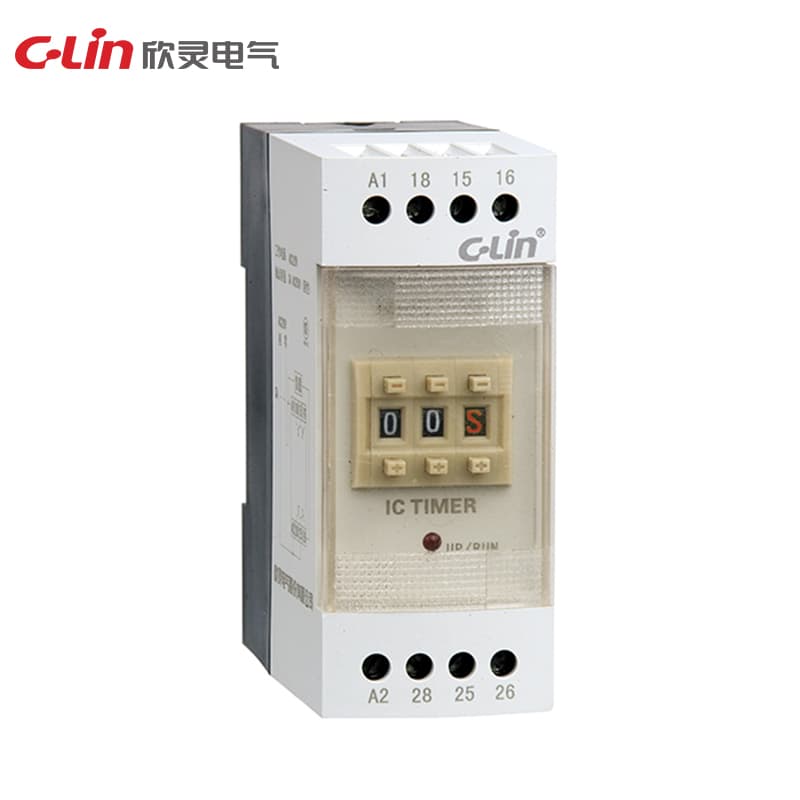

Time Relay HHS17 Series
Model Number: HHS17P

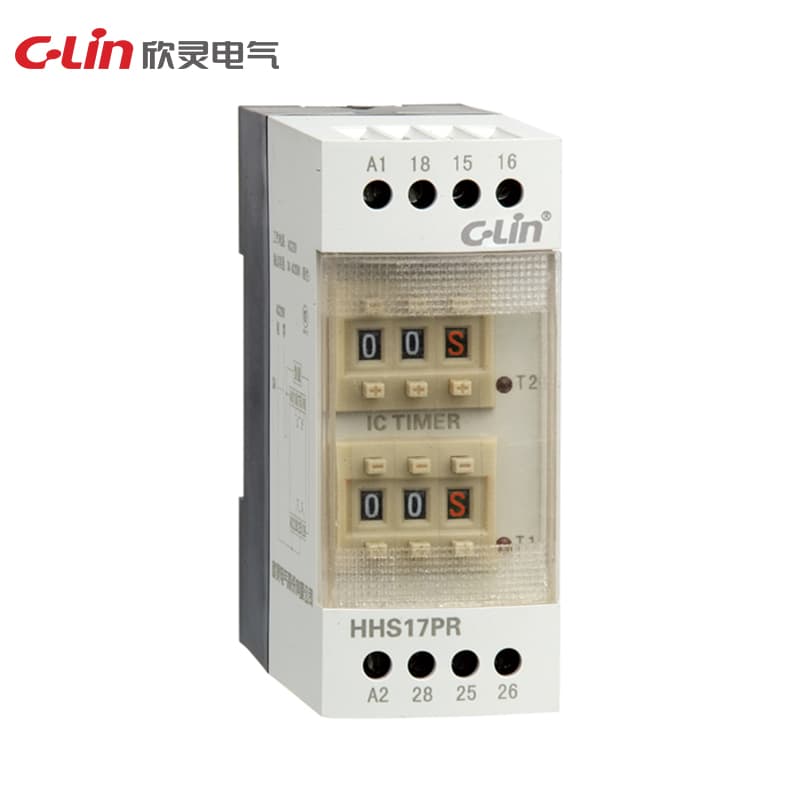

HHS17PHHS17PR
Working power supply: AC/DC24V; AC/DC100V-240V Delay range: 0.1s~99h Repeat error: ≤1% Working mode: Power-on delay Contact form: Two sets of delay contacts Contact capacity: 3A AC250V (resistive) Dimensions: 33×78×68.5mm Installation method: Device type or 35mm guide rail type
Request QuoteTechnical Specifications
| Ui | 400V |
| Ith | 5A |
| Uimp | 2.5KV |
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
| Altitude | ≤2000m |
| Humidity | The relative humidity of the air shall be ≤50 per cent at a maximum temperature of 40°C at the place of installation, and higher relative humidity may be permitted at lower temperatures, e.g. up to 90 per cent at 20°C. Special measures should be taken for occasional condensation due to temperature changes. |
| Delay range | 0.1s-99h( time based adjuestable) |
| Contact form | 2 sets of time-delay changeover contacts |
| Installation | Device type, 35mm rail type |
| Working Mode | Power-on delay |
| Specification | HHS17P |
| Setting method | 2-digit with time base dip switch setting |
| Operating power | DC24V/AC24V,AC/DC100-240V |
| Contact capacity | 3A AC250V (resistive) |
| Repetition error | Er≤1% for delay range >1s; Er<50ms for delay range <1s |
| Temperature range | -5°-40°C |
