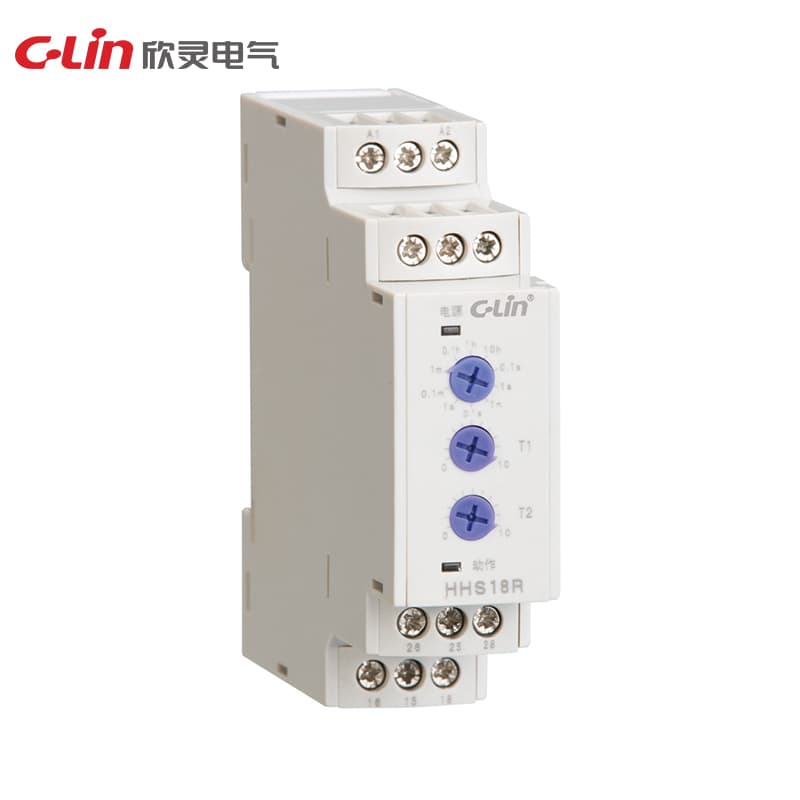

Time Relay HHS18 Series

Name: Time Relay HHS18 Series
Brand: C-Lin
SKU: HHS18R

Model Number: HHS18R

Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 0.1s~120h Repeat error: ≤1% Working mode: eight modes including power-on delay and release delay Contact form: HHS18: two groups of delay HHS18-C: one group of delay and one group of instantaneous Contact capacity: 1A AC240V (resistive) Dimensions: 24.5×85.5×90.5mm Installation method: device type or 35mm guide rail type Alternative products: H3DS, RE11, DHC19-M, NJB1-S

Request Quote

Technical Specifications

Ui	400V
Ith	5A
Uimp	2.5KV
Ue/Ui	Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Altitude	≤2000m
Humidity	The relative humidity of the air shall be ≤50 per cent at a maximum temperature of 40°C at the place of installation, and higher relative humidity may be permitted at lower temperatures, e.g. up to 90 per cent at 20°C. Special measures should be taken for occasional condensation due to temperature changes.
Delay range	0.1s-120h
Contact form	HHS18, HHS18R: two sets of time-delay changeover contacts HHS18-C, HHS18R-C: one set of time-delay, one set of instantaneous
Installation	Mounted, Rail Mounted
Working Mode	Power-on delay eight modes
Specification	HHS18
Operating power	DC24V;AC24V,AC36V,AC110V,AC220V,AC380V 50Hz
Contact capacity	1A AC240V (resistive)
Repetition error	Er≤1% for delay range >1s; Er<50ms for delay range <1s
Temperature range	-5°-40°C
