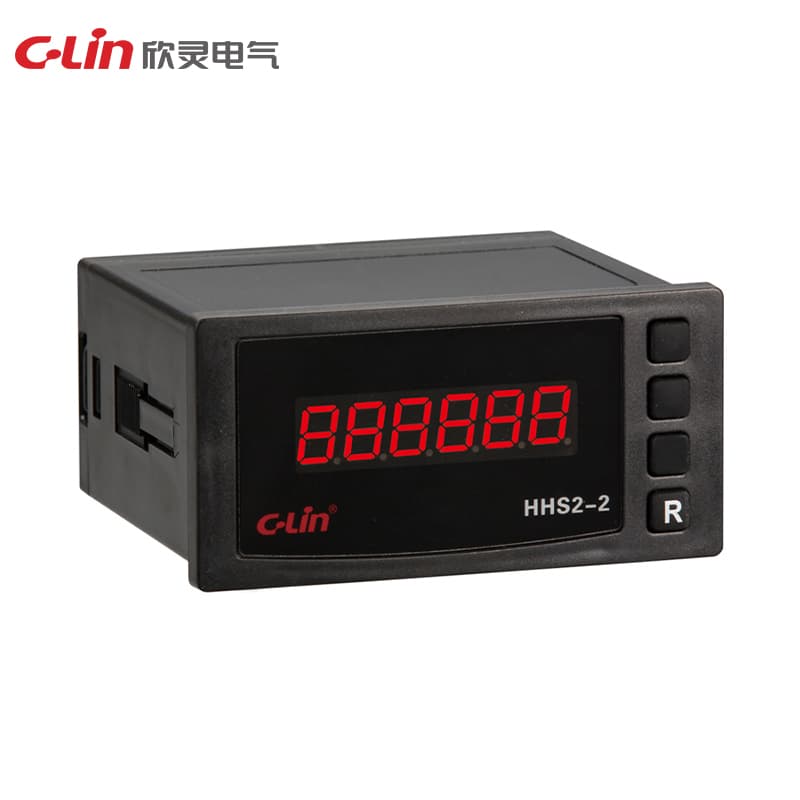

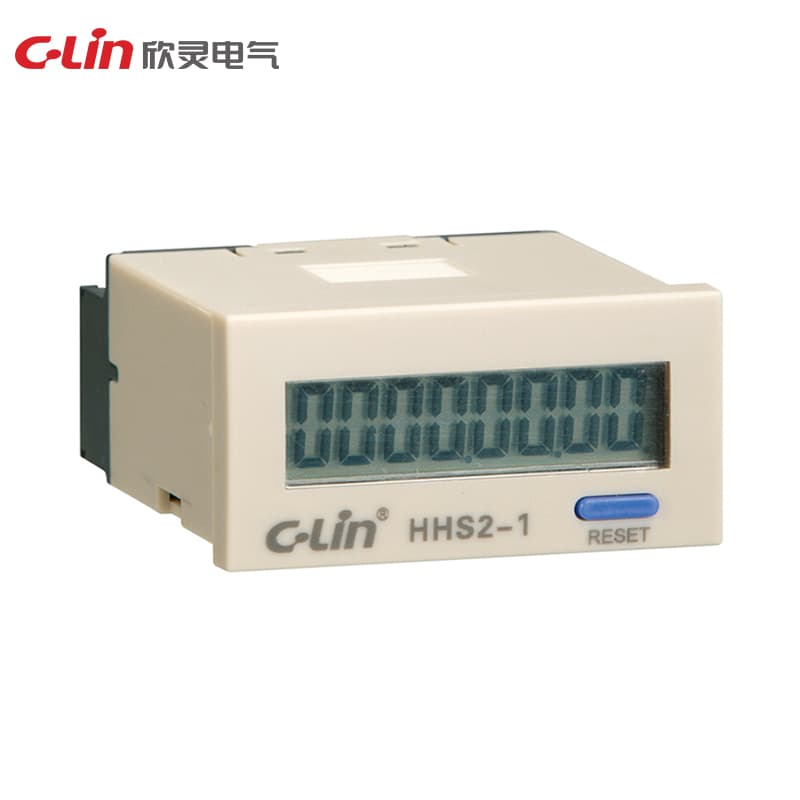

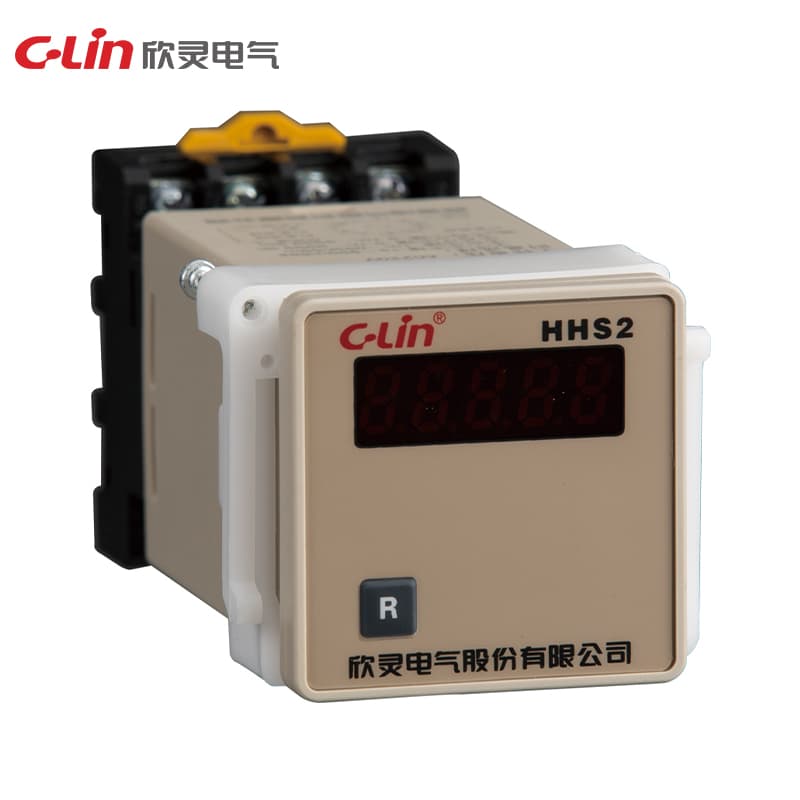

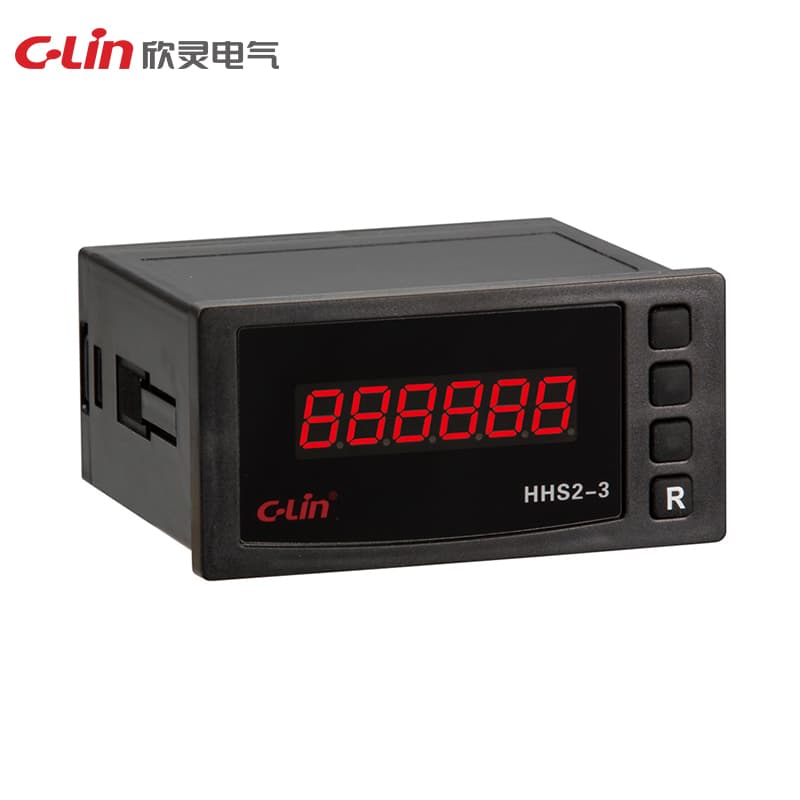

Time Relay HHS2 Series

Name: Time Relay HHS2 Series
Brand: C-Lin
SKU: HHS2

Model Number: HHS2

Working power supply: DC24V; AC24V, AC220V, AC380V Timing range: 999.999s, 9999.99s, 99999.9s, 999999s, 9999m59s, 99h59m59s; Display mode: six-digit digital display Working mode: automatic clearing, cumulative timing for selection Control mode: level (magnetic ring) and contact timing Reset mode: external terminal short circuit or panel button reset

Request Quote

Technical Specifications

Altitude	≤2000m
Humidity	The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes.
Reset Mode	Panel push button switch reset and terminal shorting reset
Delay range	1s~999m59s;0.1m-9999.9m;1m-999h59m;0.1h-9999.9h
Display mode	Digital tube display
Installation	Panel type, 35mm rail type, fixtured type
Blackout hold	10 years
Specification	HHS2
Operating power	AC380V,AC220V,AC110V,AC36V,AC24V, 50Hz; DC24V
Repetition error	≤ 0.01%
Temperature range	-5°-40°C
Contamination level	3
Rated insulation voltage Ui	400V
Conventional heating current Ith	5A
Rated impulse withstand voltage Uimp	2.5KV
