C-Lin

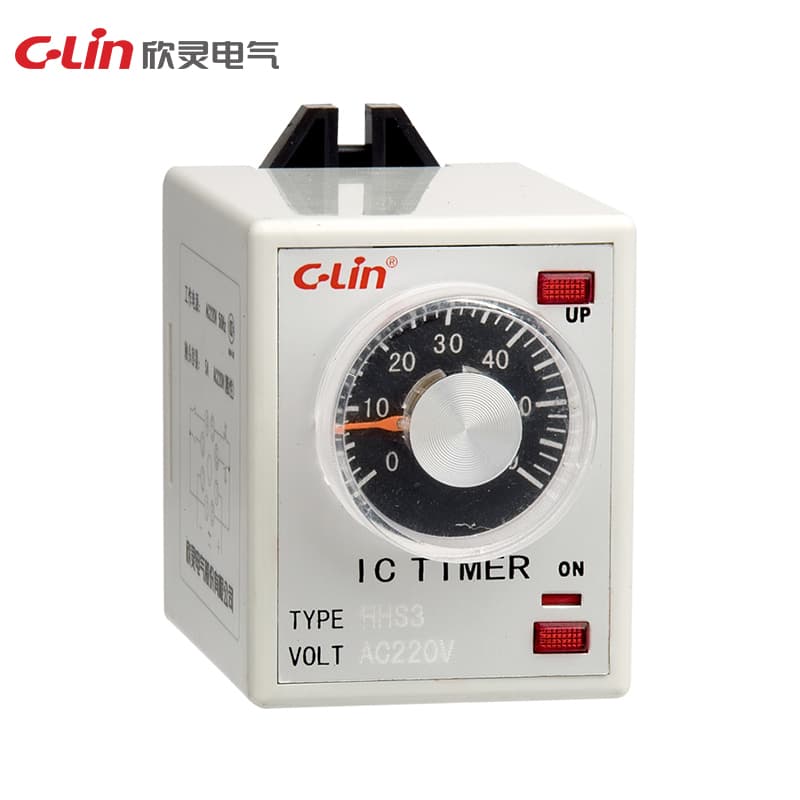

Time Relay HHS3 Series
Model Number: HHS3
HHS3HHS3-M
Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 1s, 5s, 10s, 30s, 60s, 5min 10min, 30min, 60min, 5h, 10h Repeat error: ≤1% Working mode: HHS3: power-on delay; HHS3G: release delay; HHS3C: power-on delay with instantaneous action Contact form: HHS3, HHS3G: two groups of delay HHS3C: one group of delay with one group of instantaneous action Contact capacity: 3A AC250V (resistive) Dimensions: 50×78×92mm Opening size: 75.5-2×Φ4.5mm Installation method: device type
Request QuoteTechnical Specifications
| Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie: AC-15 Ue:AC250V,Ie:3A in each category of use. |
| HHS3C-M | Power-on delay with instantaneous action |
| HHS3G-M | Release delay |
| Altitude | ≤2000m |
| Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. |
| Dimensions | 57×87×92mm |
| Delay Range | 1s、3s、5s、10s、30s、60s、3m、5m、10m、30m、60m、3h、5h、10h |
| Contact form | HHS3-M, HHS3G-M |
| Installation | Panel Type, Rail Type，Installation type |
| Opening size | 51×63mm 75.5-2×Φ4.5mm |
| Repeat error | ≤1% |
| Working mode | HHS3-M：power-on delay |
| Specification | HHS3 |
| Operation Mode | Power-on delay |
| Contact numbers | 2 sets of delayed transitions |
| Operating power | AC380V,AC220V,AC110V,AC36V,AC24V, 50Hz;DC24V |
| Contact capacity | 3A AC250V (resistive) |
| Repetition error | ≤1% |
| Temperature range | -5°-40°C |
| Installation method | Panel type |
| Working power supply | DC24V; AC24V, AC220V, AC380V |
| Rated insulation voltage Ui | 400V |
| Conventional heating current Ith | 5A |
| Rated impulse withstand voltage Uimp | 2.5KV |
