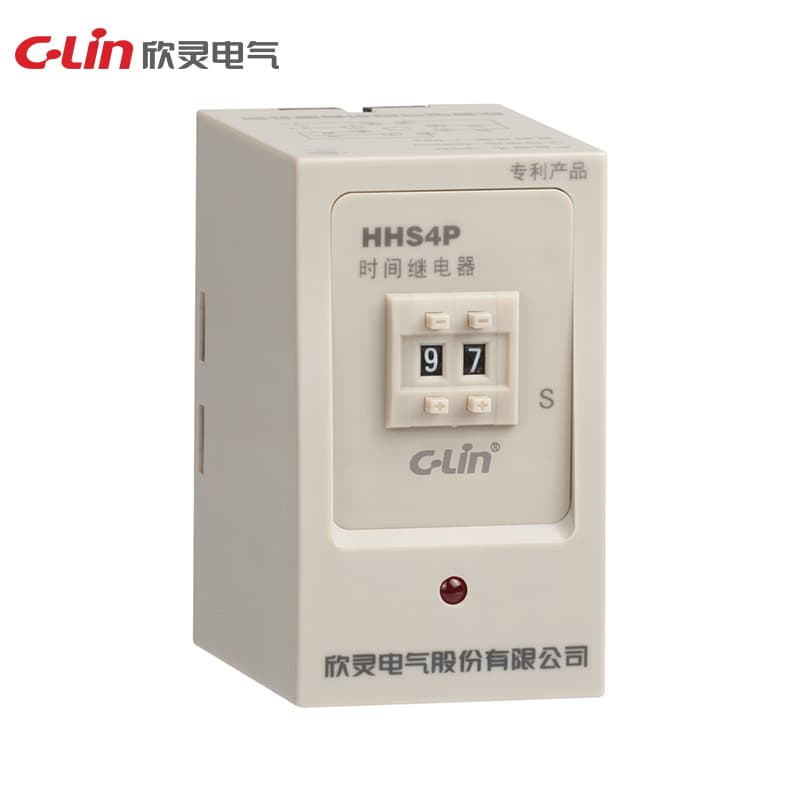

Time Relay HHS4 Series
Model Number: HHS4P
Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 0.5s~3600s Repeat error: ≤1% Working mode: HHS4 (JS14A, JS20): power-on delay HHS4C (JS20/03): power-on delay with instantaneous action HHS4G: release delay Contact form: HHS4, HHS4G: two groups of delay HHS4C: one group of delay and one group of instantaneous action Contact capacity: 3A AC250V (resistive) Dimensions: 45×82×83mm Opening size: 56-2×Φ4.5mm Installation method: device type or 35mm guide rail type
Request QuoteTechnical Specifications
| Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
| Altitude | ≤2000m |
| Humidity | The relative humidity of the air is ≤50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. |
| Delay Range | 0.1s~1s、0.5s~5s、1s~10s、3s~30s、6s~60s、12s~120s、18s-180s、30s-300s、60s~600s、90s~900s、120s~1200s、180s~1800s、360s~3600s |
| Installation | Device Type, Rail Type |
| Specification | HHS4 |
| Movement Forms | Power-on delay |
| Operating power | AC380V,AC220V,AC127V,AC110V,AC36V,AC24V, 50Hz;DC24V |
| Contact capacity | 3A AC250V (resistive) |
| Repetition error | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. |
| Temperature range | -5°-40°C |
| Number of contacts | Delay 2 conversion |
| Rated insulation voltage Ui | 400V |
| Conventional heating current Ith | 5A |
| Rated impulse withstand voltage Uimp | 2.5KV |
