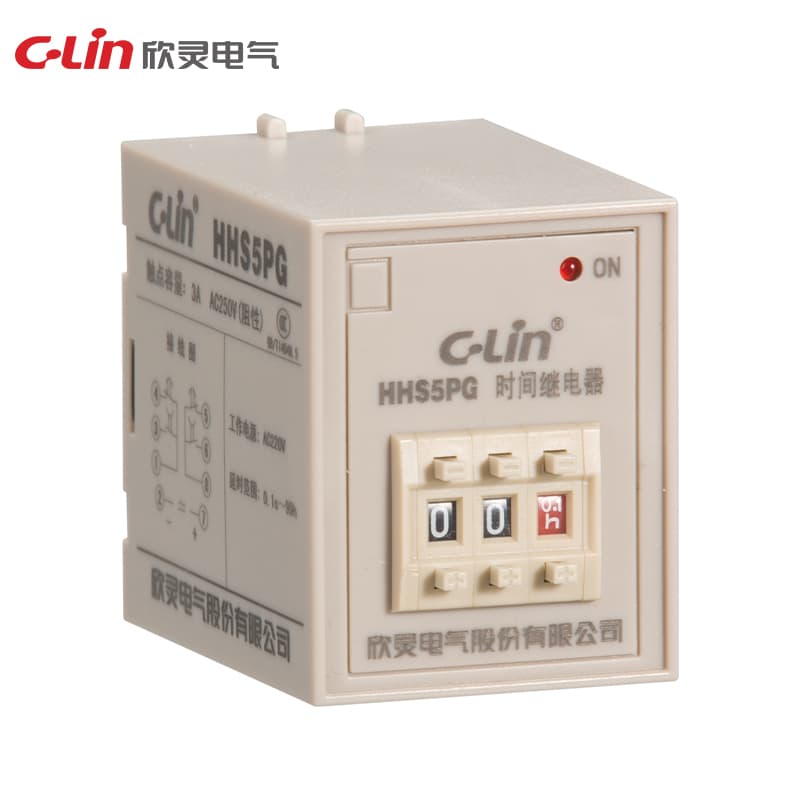

Time Relay HHS5 Series
Model Number: HHS5PG
Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 1s, 5s, 10s, 30s, 60s, 120s, 180s Repeat error: ≤5% Working mode: power-off delay Contact form: HHS5F: one set of delay contacts with reset HHS5F1: two sets of delay contacts HHS5F2: one set of delay contacts and one set of instantaneous contacts Contact capacity: 3A AC250V (resistive) Dimensions: 40.5×54×84mm Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail Alternat
Request QuoteTechnical Specifications
| Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
| HHS5PY | Star-delta start delay |
| Contact | One set of delay contacts with reset |
| Altitude | ≤2000m |
| Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. |
| Dimensions | 40.5×54×75.5mm |
| Delay Range | 0.1s-1s；0.2s-2s 0.5s-5s;1s-10s;2.5s-30s;5s-60s;10s-120s;15s-180s |
| Temperature | -5℃ to 40℃ |
| Contact form | Two sets of delay contacts |
| Installation | Unit, panel and 35m rail mounting with different sockets and accessories. |
| Repeat error | ≤ 1% |
| Working mode | Power-on delay |
| Specification | HHS5F |
| Movement Forms | Power failure delay |
| Operating mode | Power off delay |
| Setting method | Potentiometer |
| Operating power | AC380V,AC220V,AC110V,AC36V,AC24V, 50Hz;DC24V,DC110V,DC220V |
| Contact capacity | 3A AC250V (resistive) |
| Repetition error | Er<5% when the delay range is greater than 1s; Dr<100ms when the delay range is less than 1s. |
| Time Delay range | 1s、5s、10s、30s、60s、120s、180s |
| Temperature range | -5°-40°C |
| Number of contacts | Delay 1conversion |
| Alternative product | ST3PR |
| Installation method | With different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail |
| Alternative products | ST3PA, ST3PC |
| Rated Supply Voltage | AC24V、AC36V、ACI10V、AC220V、 AC380V50Hz:DC24V、DCI10V、 DC220V:Allowable voltage fluctuation range (85%~110%)Ue |
| Working power supply | DC24V; AC24V, AC220V, AC380V |
| Rated Load of the Contact | 3A AC250V(Resistive) |
| Rated insulation voltage Ui | 400V |
| Conventional heating current Ith | 5A |
| Rated impulse withstand voltage Uimp | 2.5KV |
