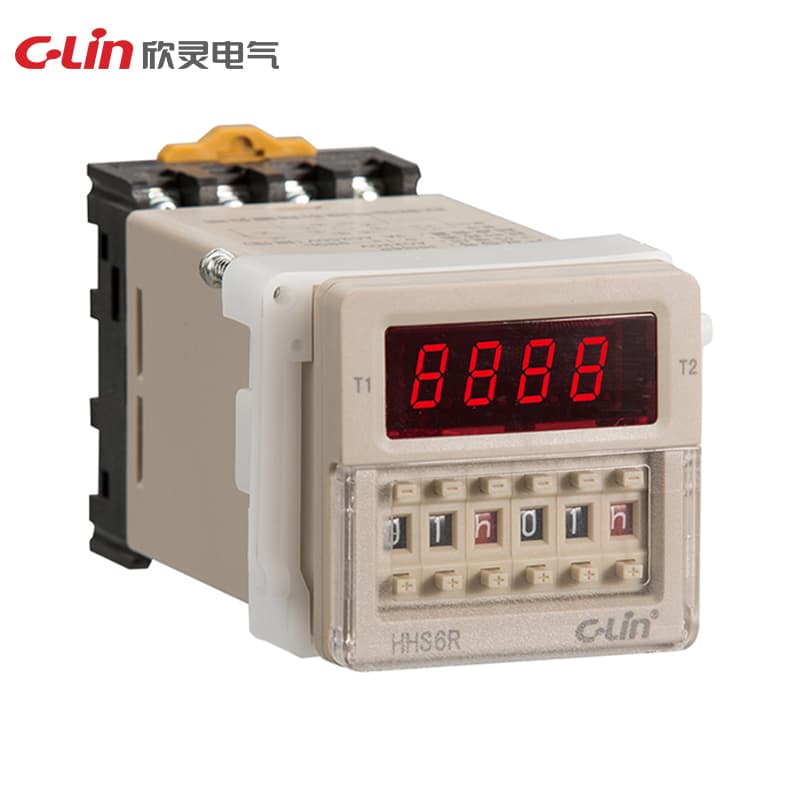

Multi-circuti Time Relay HHS6 Series
Model Number: HHS6R
Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 0.01s~99h99m hours, minutes and seconds setting Repeat error: ≤1% Working mode: power-on delay Contact form: two sets of delay with reset pause terminal (11 feet) Contact capacity: 3A AC250V (resistive) Dimensions: 48×48×115mm Opening size: 45×45mm Installation method: panel type, device type, 35mm guide rail type Alternative product: JSS48A
Request QuoteTechnical Specifications
| Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
| Contact | Delay 1 transition with reset pause |
| HHS6A-1 | One group of delay with reset start function |
| HHS6A-2 | Two groups of delay contacts |
| Altitude | ≤2000m |
| Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. |
| Dimensions | 48×48×115mm |
| Delay Range | 0.01s-99.99s;1s-99m99s;1m-99h99m |
| Temperature | -5℃ to 40℃ |
| Timing mode | Positive/countdown, double-row display |
| Contact form | HHS6A:two groups of delay with reset start function |
| Display mode | Digital tube display |
| Installation | Panel type, 35mm rail type, fixtured type |
| Opening size | 45×45mm |
| Repeat error | ≤1% |
| Working mode | Power-on delay, release delay/memory/non-memory function optional |
| Specification | HHS6 |
| Movement Forms | Power-on delay |
| Operating mode | Power off delay |
| Control circuit | 1, 2, 3, 4 |
| Operating power | AC380V,AC220V,AC127V,AC110V,AC36V,AC24V, 50Hz;DC24V |
| Contact capacity | 3A AC250V (resistive);DC24V 5A |
| Repetition error | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. |
| Time Delay range | 0.1s-990h |
| Temperature range | -5°-40°C |
| Number of contacts | 2 sets of time delay with reset pause function |
| Installation method | Panel type, device type, 35mm guide rail type |
| Rated Supply Voltage | DC24V;AC24V、AC220V、AC380V |
| Working power supply | DC24V; AC24V, AC220V, AC380V |
| Rated Load of the Contact | 3A AC250V(Resistive) |
| Rated insulation voltage Ui | 400V |
| Conventional heating current Ith | 5A |
| Rated impulse withstand voltage Uimp | 2.5KV |
