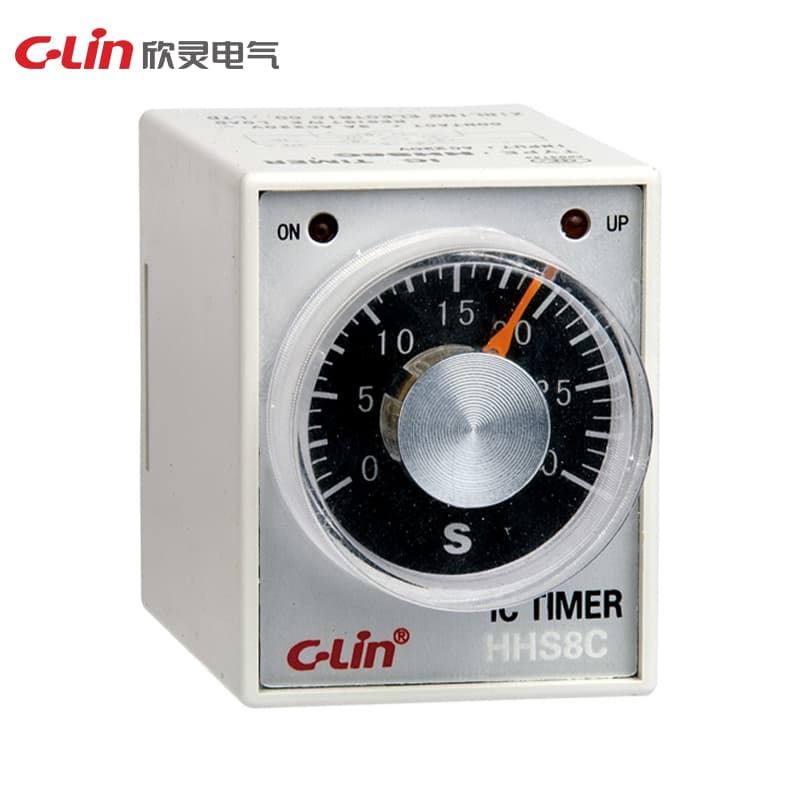

Time Relay HHS8 Series
Model Number: HHS8
HHS8HHS8-NA
Working power supply: DC24V; AC24V, AC220V, AC380V Delay range: 1s, 5s, 10s, 30s, 60s, 120s, 180s, 5m 10m, 30m, 60m Repeat error: ≤1% Working mode: HHS8 (AH3-2): power-on delay HHS8C (AH3-3, ST2P): power-on delay with instantaneous action HHS8G: release delay Contact form: HHS8G, HHS8 (AH3-2): two groups of delay contacts HHS8C (AH3-3, ST2P): one group of delay and one group of instantaneous action Contact capacity: 3A AC250V (resistive) Dimensions: 40.5×50.5×82mm Installation method: With different sockets
Request QuoteTechnical Specifications
| Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
| Altitude | ≤2000m |
| Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. |
| Delay Range | 1s、3s、5s、10s、30s、60s、3m、5m、10m、30m、60m、3h、5h、10h、12h |
| Installation | Mounting on a device or 35mm rail with different bases |
| Specification | HHS8-1 |
| Movement Forms | Power-on delay |
| Operating power | AC380V,AC220V,AC110V,AC36V,AC24V, 50Hz;DC24V |
| Contact capacity | 3A AC250V (resistive) |
| Repetition error | ≤1% |
| Temperature range | -5°-40°C |
| Number of contacts | 1 set of time-delay contacts |
| Rated insulation voltage Ui | 400V |
| Conventional heating current Ith | 5A |
| Rated impulse withstand voltage Uimp | 2.5KV |
