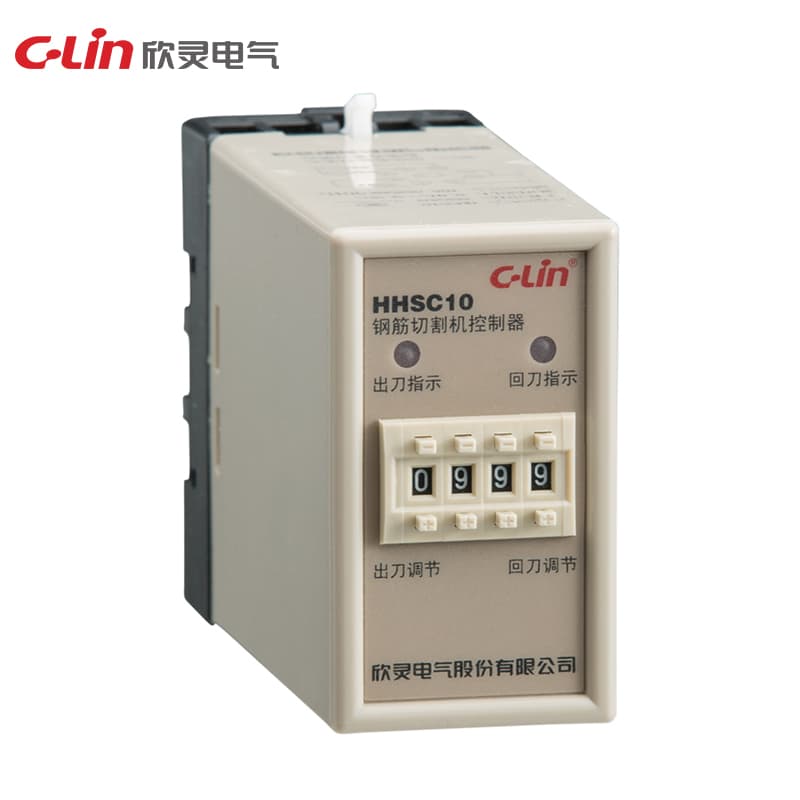

Steel Bar Cutting Machine Controller HHSC10 Series

Name: Steel Bar Cutting Machine Controller HHSC10 Series
Brand: C-Lin
SKU: HHSC10

Model Number: HHSC10

Working power supply: AC220V, AC380V Delay range: 0.01s~0.99s Repetition error: ≤1% Working mode: power-on delay Contact form: two sets of delay conversion contacts; one set of counting signal contacts Contact capacity: 10A AC250V (resistive) Dimensions: 45×82×108mm Opening size: 56-2x diameter 4.5mm Installation method: device test and 35mm rail type Note: Applicable to use with AC contactor

Request Quote

Technical Specifications

Delay range	0.01s~0.99s
Temperature	-5 ℃ ~ +40 ℃
Installation	Panel type
Specifiation	HHSC10
Contact capacity	AC250V 10A COSФ=1
Operating voltage	AC24V,36V,110V,127V,220V,380V50Hz,allowable voltage fluctuation range(85~110%)Ue;DC24V.
Number of contacts	2 groups of delay conversion contacts; a group of counting signals
