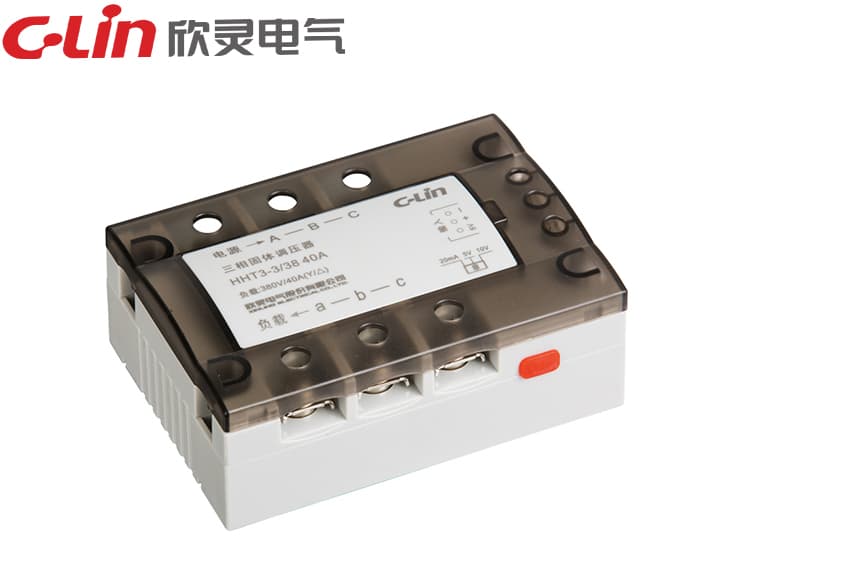

Intelligent Solid-State Voltage Regulator HHT3 Series

Model Number: HHT3-338

Control mode: 0-5VDC, 0-10VDC, 4-20mA manual potentiometer control Rated voltage: 380VAC Phase shift range: 0~150° Voltage adjustment range: 0-380VAC Isolation voltage: Active full isolation Load current: 25A, 40A, 75A, 100A, 125A, 150A, 180A Minimum blocking: ≤ 10VAC below 40A ≤ 30VAC above 60A Off-state leakage current: ≤ 10mA Dielectric withstand voltage: ≥2000VAC Ambient temperature: -30~80℃ Dimensions: 106.4×75.4×43.3mm Installation form: Bolt installation Description: Loads above 5A must be equipped w
