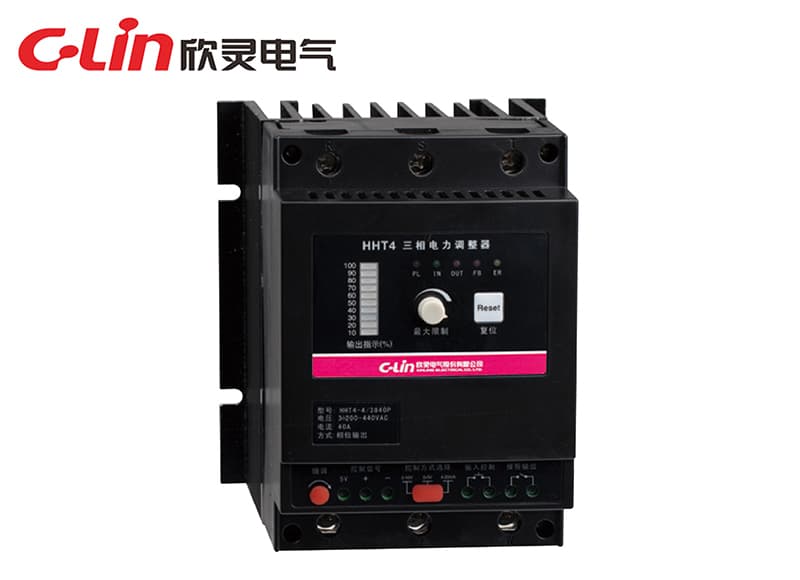

Three-Phase Power Regulator HHT4 Series
Model Number: HHT4-4/38 25P
Control mode: 4-20mA, 0-5V, 0-10V three modes are optional Output mode: phase output, phase shift range 0-150° Load voltage: three-phase 380VAC (three-phase three-wire) Load current: 125, 150, 200A Protection function: fast fuse Alarm function: phase failure, overtemperature, relay output (1A/250VAC) Dielectric withstand voltage: ≥2000VAC Display function: LED panel displays SCR output percentage and working status indication Installation method: bolt installation Used load: fixed impedance heating wire, IR
Request QuoteTechnical Specifications
| Model | HHT4-4/38 25P |
| Use load | Fixed impedance heating wire, IR far infrared, UV lamp tube, etc |
| Dimension | 285×148×210mm |
| Control mode | Three options: 4-20mA, 0-5V, 0-10V |
| Load current | 125A |
| Load voltage | 3-phase 380VAC (3-phase 3-wire) |
| Output method | Phase output, phase shift range 0-150° |
| Alarm function | Phase failure, overtemp, relay output (1A/250VAC |
| Cooling method | Forced air cooling |
| Display function | LED panel displays SCR output percentage and wor |
| Dielectric strength | ≥2000VAC |
| Installation method | Bolt installation |
| Protection function | Quick fuse |
