Single-Phase Solid-State Voltage Regulator HHT1 Series
C-Lin

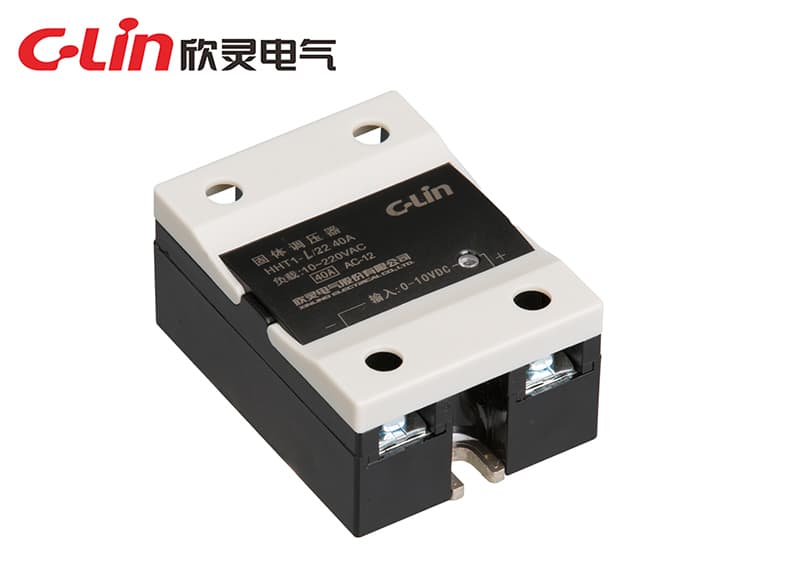

Single-Phase Solid-State Voltage Regulator HHT1 Series

Model Number: HHTI-L

HHT1-UHHTI-LHHTI-R
Request Quote

Technical Specifications

ModelHHTI-L
Control mode4-20mA adjustment
Load current10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A
Load voltage22: 220VAC, 38: 380VAC
Isolation voltagePassive type fully isolated
Dielectric strength≥2500VAC
Voltage regulation range22: 10-250VAC, 38: 10-440VAC
Off-state leakage current≤ 10mA
