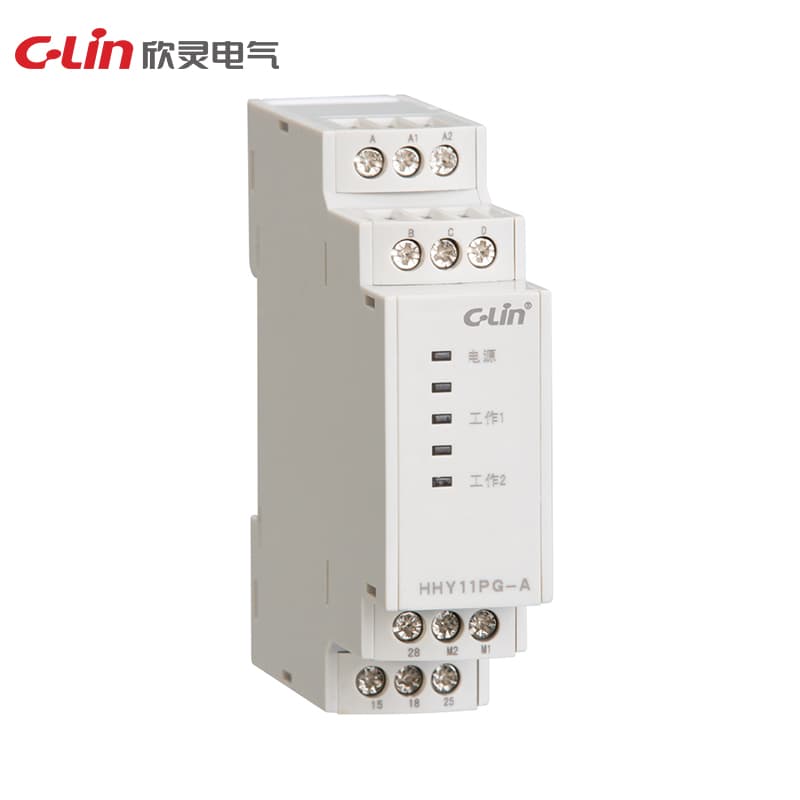

Liquid Level Relay HHY11 Series
Model Number: HHY11PG-A
HHY11PGHHY11PG-A
Working power supply: AC/DC 100~240V Working mode: water supply, drainage type (short-circuit terminal selection) Water control distance: ≤500 meters Contact form: a set of normally open and normally closed contacts Contact capacity: 1A AC240V (resistive) Dimensions: 24.5×85.5×90.5mm Installation method: device type or 35mm guide rail type
Request QuoteTechnical Specifications
| Ui | 380V |
| Ith | 3A |
| Uimp | 4KV |
| Ue/Ie | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
| Dimensions | 24.5×85.5×90.5mm |
| Contact form | a set of normally open and normally closed contacts |
| Installation | 35mm rail mounted or unit mounted |
| Working mode | Water supply, drainage type (shorting terminal selection) |
| Specification | HHY11PG |
| Working Power | AC/DC 100~240V |
| Contact capacity | 1A AC240V (resistive) |
| Water control distance | ≤500 meters |
