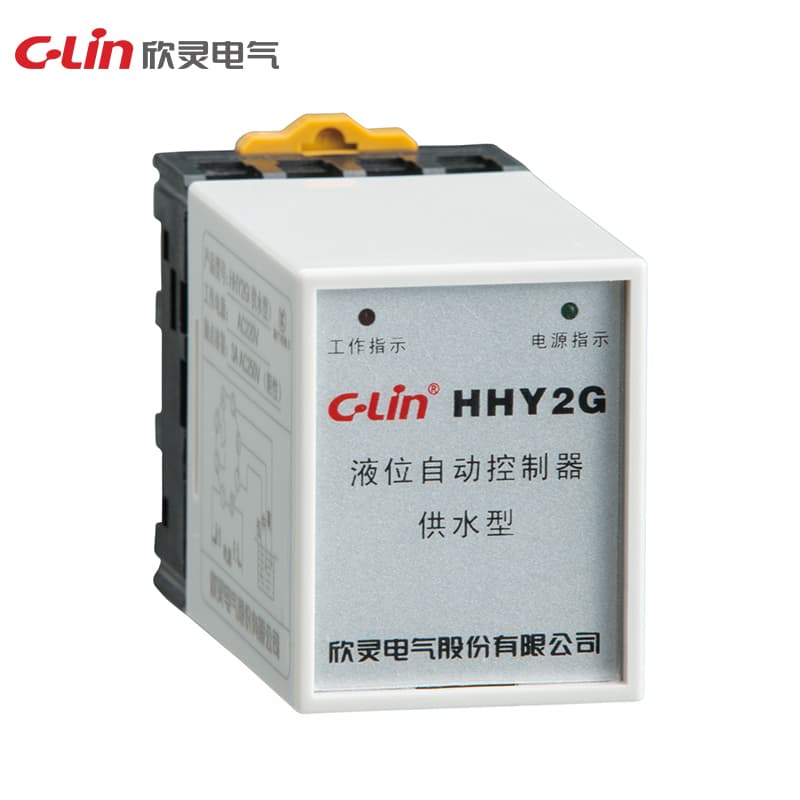

Liquid Level Relay HHY2 Series
C-Lin

Liquid Level Relay HHY2 Series

Model Number: HHY2P

HHY2GHHY2P

Working power supply: DC24V, AC24V, AC220V, AC380V Working mode: HHY2P is drainage type; HHY2G is water supply type Water control distance: ≤500 meters Contact form: a set of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 40×55×79mm Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail

Request Quote

Technical Specifications

Ui380V
Ith3A
Uimp4KV
Ue/IeRated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Dimensions40×55×79mm
Contact forma set of normally open and normally closed contacts
InstallationUnit, panel and 35mm rail mounting with different sockets and accessories
Working modeHHY2P is drainage type; HHY2G is water supply type.
SpecificationHHY2G
Working PowerDC24V、AC24V、AC220V、AC380V
Contact capacity3A AC250V (resistive)
Water control distance≤500 meter
