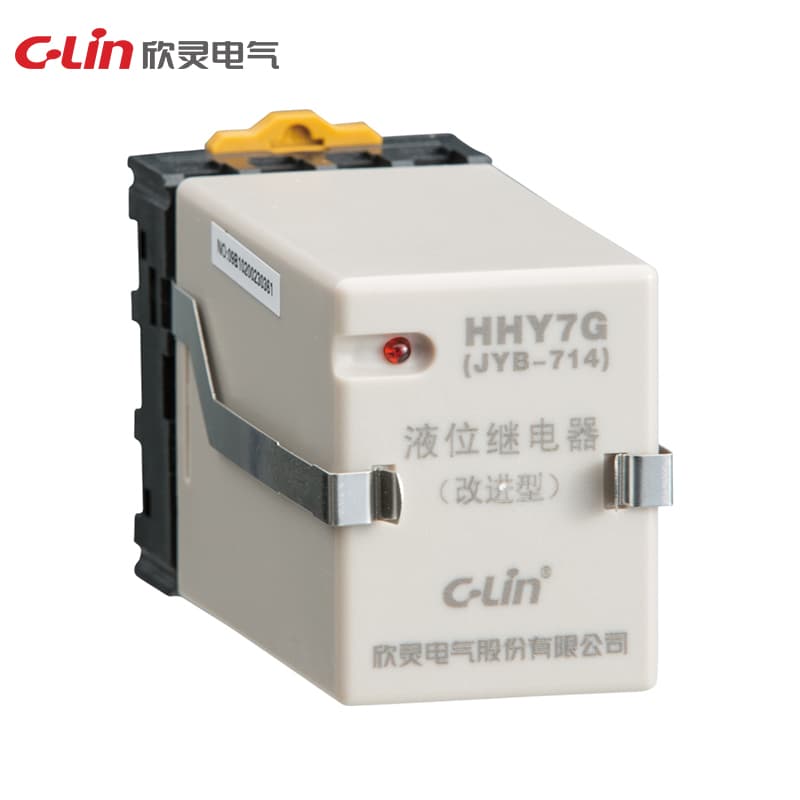

Liquid Level Relay HHY7 Series
C-Lin

Liquid Level Relay HHY7 Series

Model Number: HHY7G

HHY7GHHY7P

Working power supply: DC24V, AC24V, AC220V, AC380V Working mode: HHY7G (JYB-714) is water supply type HHY7P (JYB-714) is drainage type Water control distance: ≤100 meters Contact form: a set of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 40×62×92mm Installation method: 35mm rail type or device type

Request Quote

Technical Specifications

Ui380V
Ith3A
Uimp4KV
Ue/IeRated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Dimensions40×62×92mm
Contact forma set of normally open and normally closed contacts
Installation35mm rail mounted or unit mounted
Working modeHHY7G(JYB-714) is water supply type HHY7P(JYB-714) is water discharge type
SpecificationHHY7G
Working PowerDC24V、AC24V、AC220V、AC380V
Contact capacity3A AC250V (resistive)
Water control distance≤100 meters
