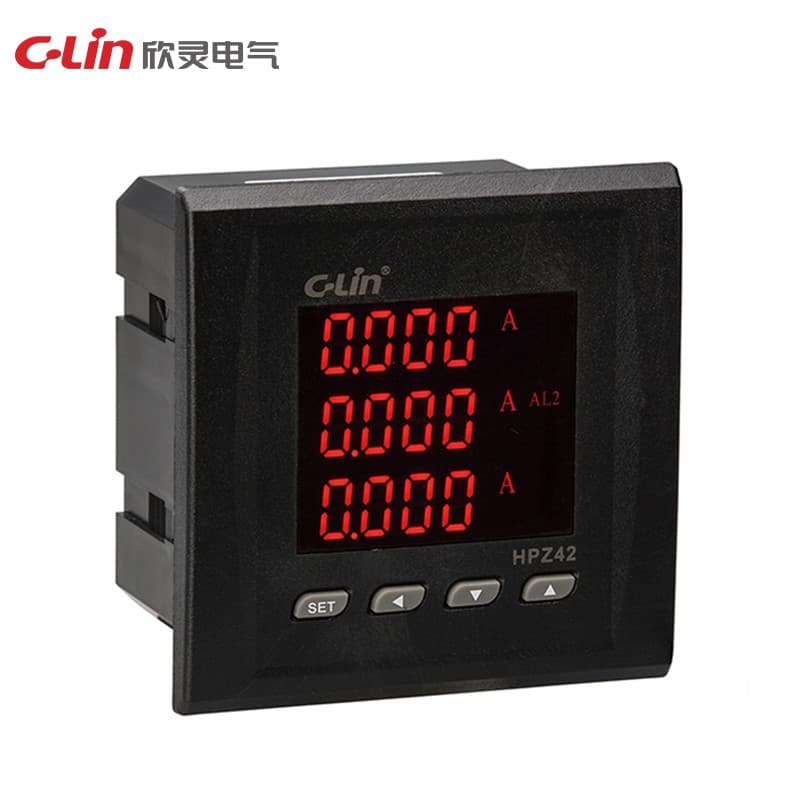

Programmable Three-phase Power Meter HPZ Series
Model Number: HPZ42
Measuring signal: AC current, voltage (three-phase) Measurement error: ≤0.5 level Display mode: integrated digital tube display Range: 0-9999 Communication interface: RS485 (optional) Current range: AC 0-5A (through) (range can be set) Greater than AC 5A (with current transformer) Voltage range: AC0-500V (through); greater than AC500V (with voltage transformer) Working power supply: AC220V or AC380V Dimensions: 123×123×96mm Opening size: 112×112mm Installation method: panel type Typical application: used fo
Request QuoteTechnical Specifications
| Model | HPZ42 |
| Range | 0~9999 |
| Dimension | 123×123×96mm |
| Hole size | 112×112mm |
| Alarm output | J1 and J2 relays |
| Display mode | Integrated digital display |
| Current range | AC 0~5A (straight-through) (range settable, CT equipped for ≥ AC5A) |
| Voltage range | AC0~500V (straight-through) (range settable, PT equipped for ≥ AC500V) |
| Supply voltage | AC220V or AC380V |
| Comm. interface | RS485 (optional) |
| Measurement error | ≤ 0.5 class |
| Operating voltage | AC100~240V |
| Measurement signal | AC current and voltage (three-phase) |
| Installation method | Panel type |
| Transmission output | M: (4~20mA) Impedance ≤ 350Ω |
| Typical application | Used for electrical signal measurement of switchgear assemblies, distribution cabinets, substations, etc. |
