Single-Circuit Intelligent Meter HWP Series
C-Lin

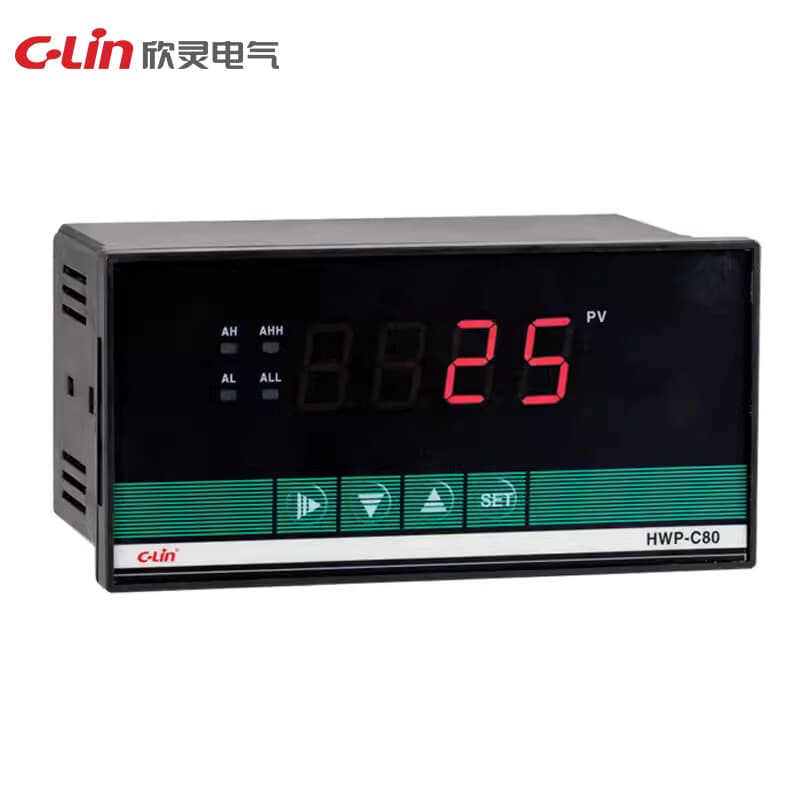

Single-Circuit Intelligent Meter HWP Series

Model Number: HWP-C803

HWP-C703HWP-C803HWP-C903

Measuring signal: Thermocouple: S, B, K, E, T, J, etc. Thermal resistor: Pt100, Cu50, etc. Current signal: 0-10mA, 4-20mA Resistance signal: 0-400Ω Voltage signal: 0-5V, 0-10mV Control mode: relay contact on-off control Working power supply: AC90~265V Transmitter output: (optional) 0~5V (load RL ≥ 250KΩ); 0~10mA(≤750Ω); 4~20mA(≤500Ω) Feed output: 24VDC(30mA) Dimensions: 96×96×112mm Opening size: 92×92mm Installation method: panel type

Request Quote

Technical Specifications

ModelHWP-C803
Dimension96×96×112mm
Hole size92×92mm
Alarm mode/
Feed output24VDC(30mA)
Output methodRelay contact on-off control
Supply voltageAC90~265V
Measurement signalThermocouple: S, B, K, E, T, J etc Thermal resistance: Pt100, Cu50 etc Current signal: 0~10mA, 4~20mA Resistance signal: 0~400Ω Voltage signal: 0~5V, 0~10V
Installation methodPanel type
Transmission output0~5V (load RL ≥ 250KΩ); 0~10mA( ≤ 750Ω); 4~20mA( ≤ 500Ω)
