Technical Specifications

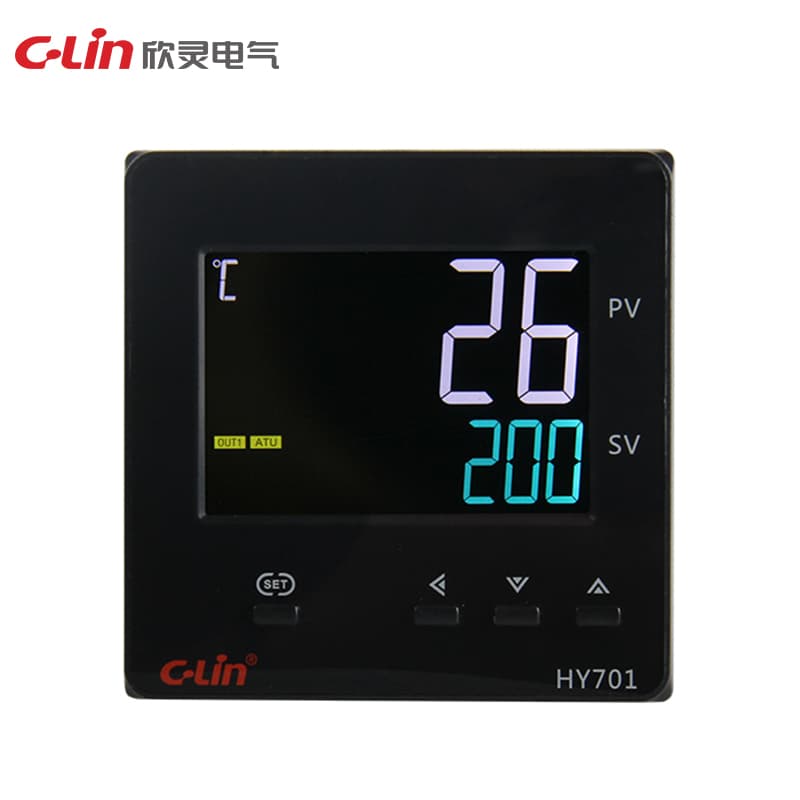

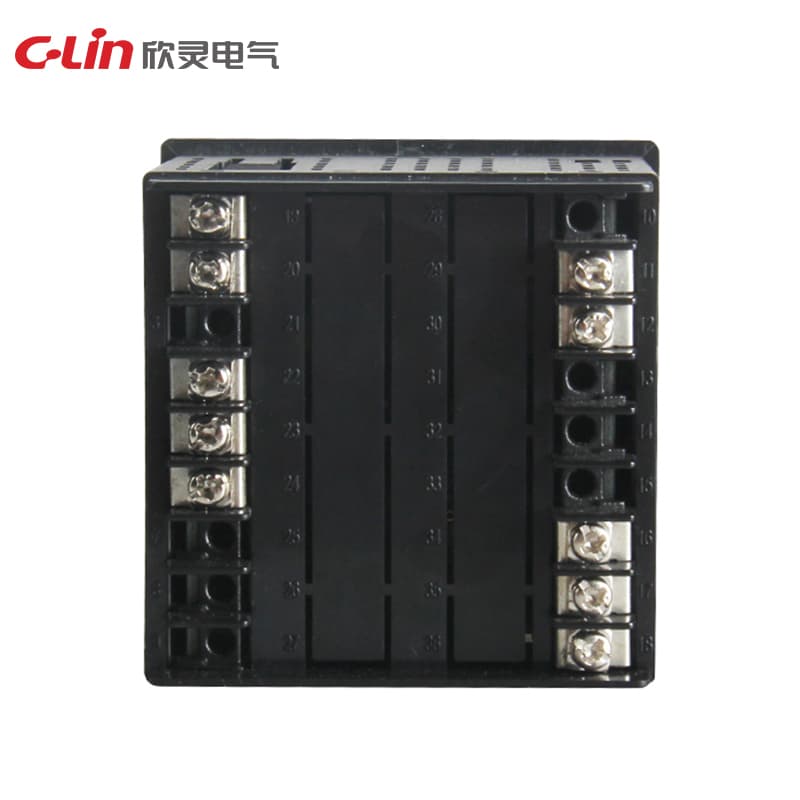

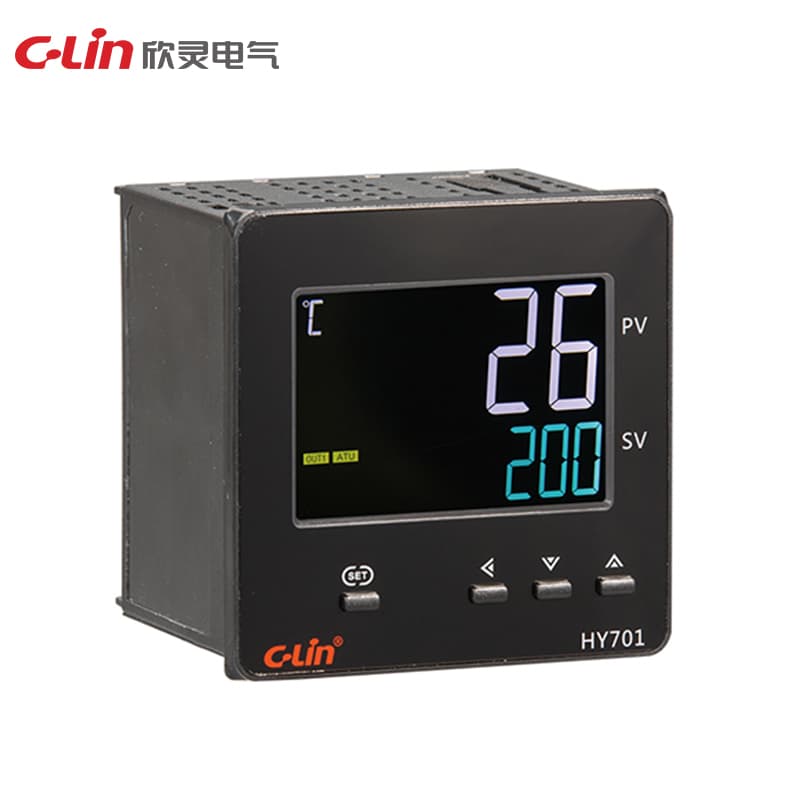

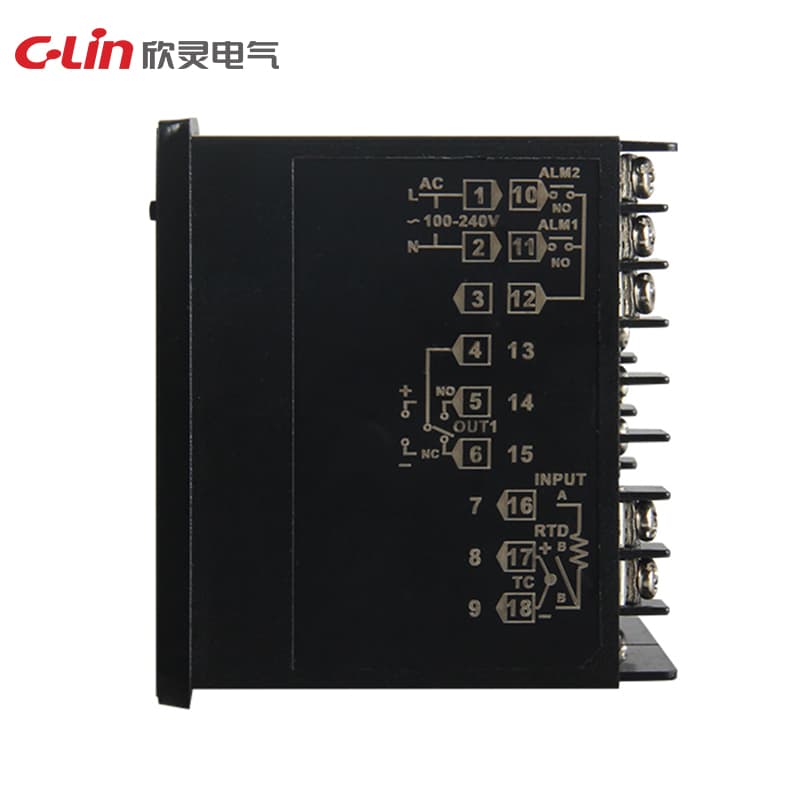

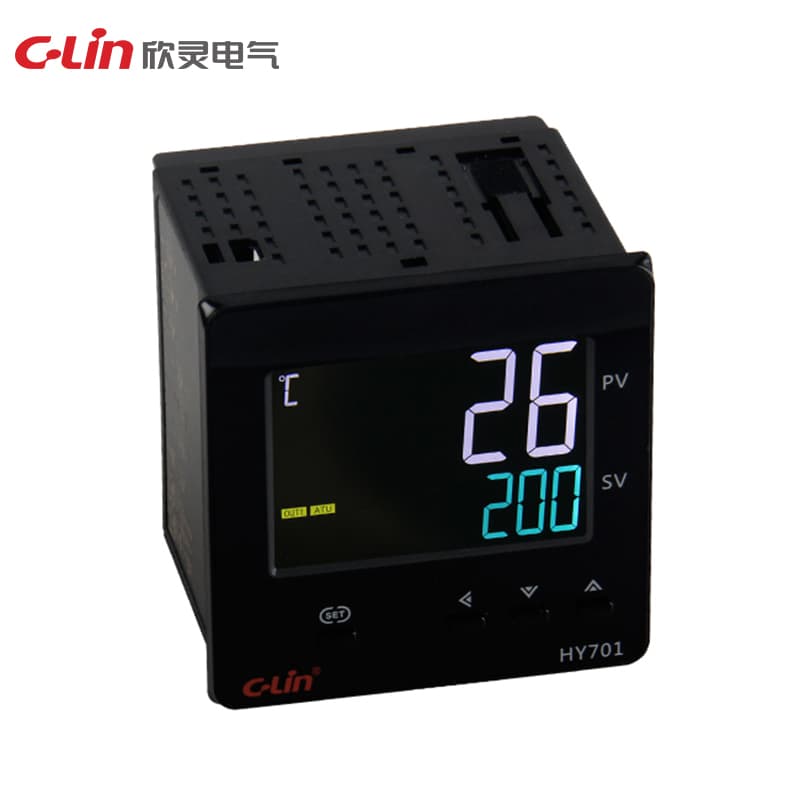

| Model | HY701 |
| Series | HY101 Series |
| Dimension | 48×48×78mm |
| Hole size | 45×45mm |
| Alarm mode | 1 set of alarm relay contact outputs |
| Control mode | Two-position relay on-off control; PID regulation relay on-off control; PID regulation drive SSR voltage control |
| Input signal | Thermocouple: K, E, J; Thermal resistance: Pt100, Cu50 |
| Supply voltage | AC100~240V |
| Typical application | Used for temperature control applications such as extruders, reflow soldering machines, shoe machines, etc |
