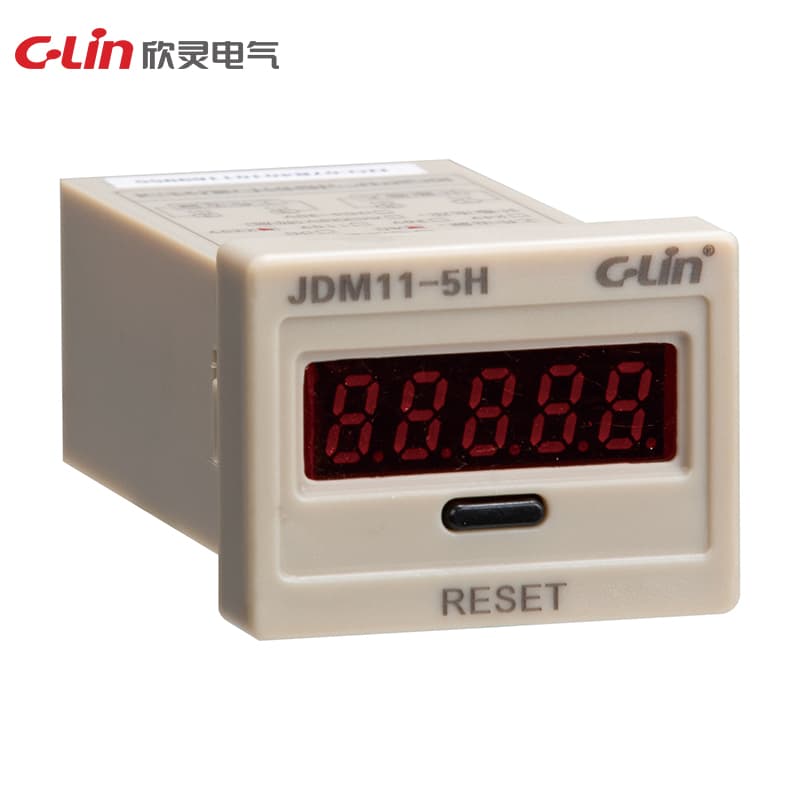

Counting Relay JDM11 Series

Name: Counting Relay JDM11 Series
Brand: C-Lin
SKU: JDM11-5H

Model Number: JDM11-5H

Power supply: DC24V; AC220V Working mode: positive counting Counting speed: 30 times/second Counting range: 1-99999 Input signal: No voltage type: contact signal Voltage type: voltage signal (DC4-30V) Power failure memory: 10 years Dimensions: 46.5×35×92mm Opening size: 38.5×27.5mm Installation method: panel type Remarks: Contact and voltage signal counting, if you need proximity/photoelectric switch counting, please select HHJ3-A

Request Quote

Technical Specifications

Dimensions	46.5×35×92mm
Input signal	Non-voltage type: contact signal Voltage type: voltage signal (DC4-30V)
Installation	panel mounted
Specification	JDM11-5H
Counting Range	1-99999
Counting speed	30 counts/sec.
Operating Mode	Positive counting
Blackout memory	10 years
Operating power	DC24V；AC220V
Temperature range	-5°-40°C
Opening dimensions	38.5×27.5mm
