Counting Relay JDM9 Series
C-Lin

Counting Relay JDM9 Series

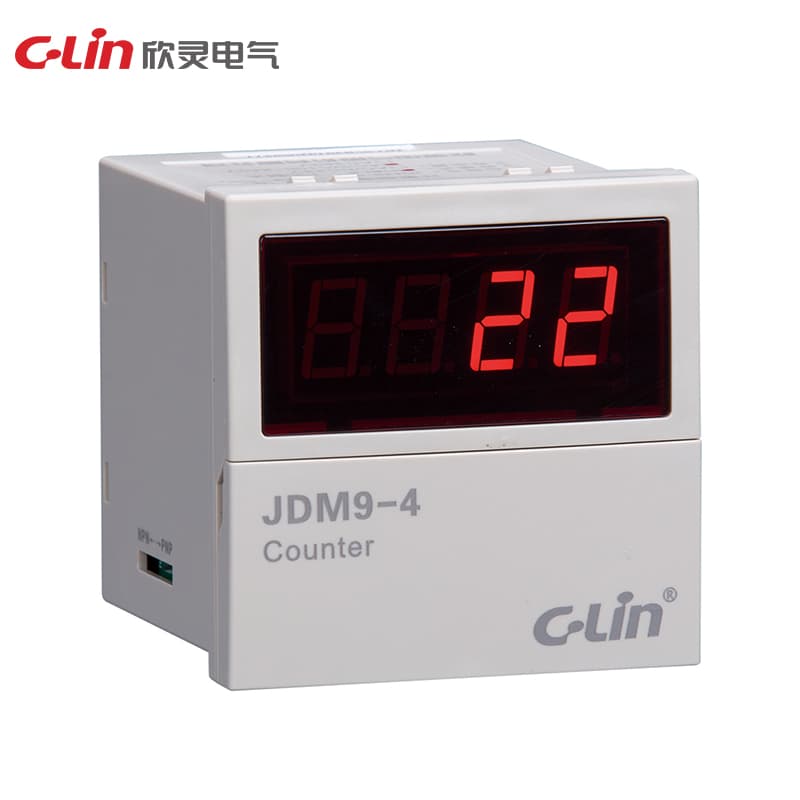

Model Number: JDM9-4

JDM9-4JDM9-6

Working power supply: AC/DC24V;AC220V;AC/DC100-240V;AC380V Working mode: positive counting, 4-digit LED display Counting speed: 100 times/second Counting range: 1-9999 Input signal: contact signal, PNP normally open photoelectric/proximity switch Output mode: N or C standard Power failure memory: 10 years Contact form: a set of normally open and normally closed contacts Contact capacity: 3A AC250V (resistive) Dimensions: 72×72×81mm Opening size: 68×68mm Installation method: panel type

Request Quote

Technical Specifications

Ui400V
Ith5A
Uimp2.5KV
Ue/UiRated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Dimensions72×72×78mm
Output modeN 、 C
Input signalContact signals, normally open photoelectric / proximity switches
Installationpanel mounted

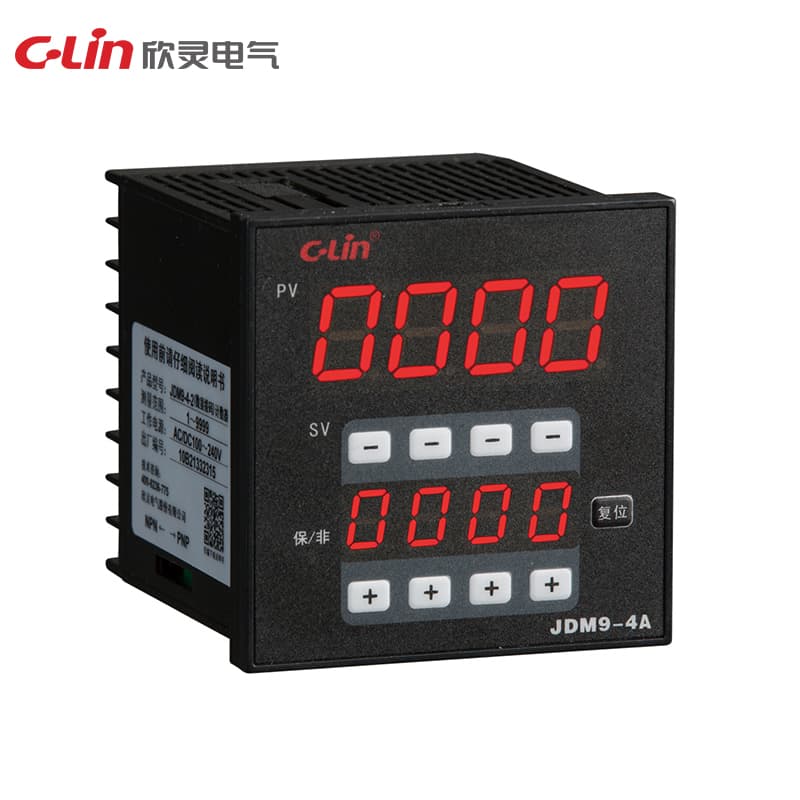

SpecificationJDM9-4A
Counting Range1-9999
Counting speed10, 30, 100, 300 counts/sec.
Operating ModePositive counting
Operating powerAC/DC 24V;AC220V;AC/DC 100-240V;AC380V
Contact capacity3A AC250V (resistive)
Temperature range-5°-40°C
Opening dimensions68×68mm
