Inductive Sensor LJE/LJE-W ISeries
C-Lin

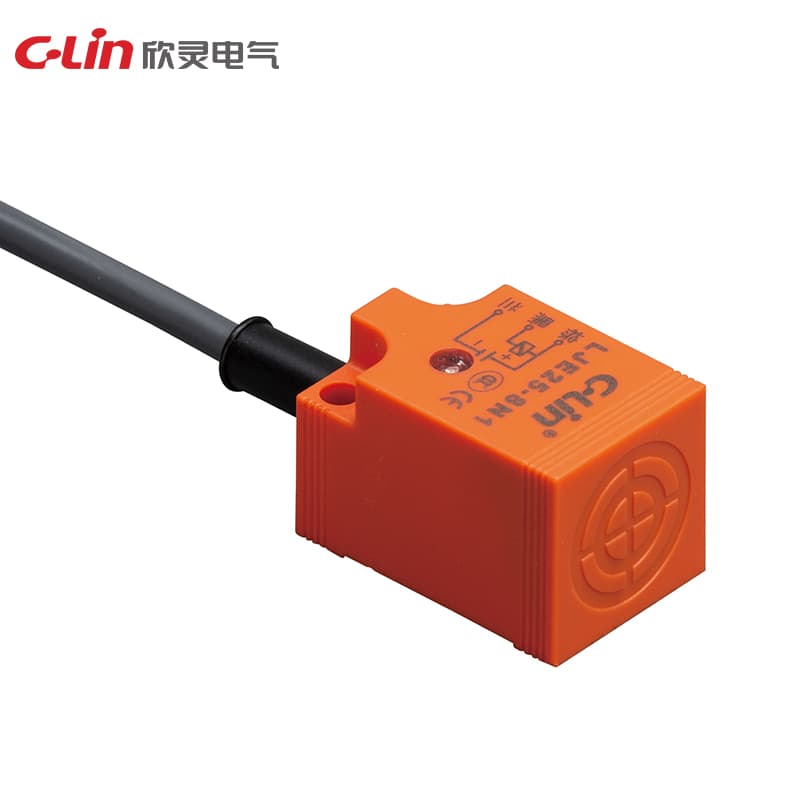

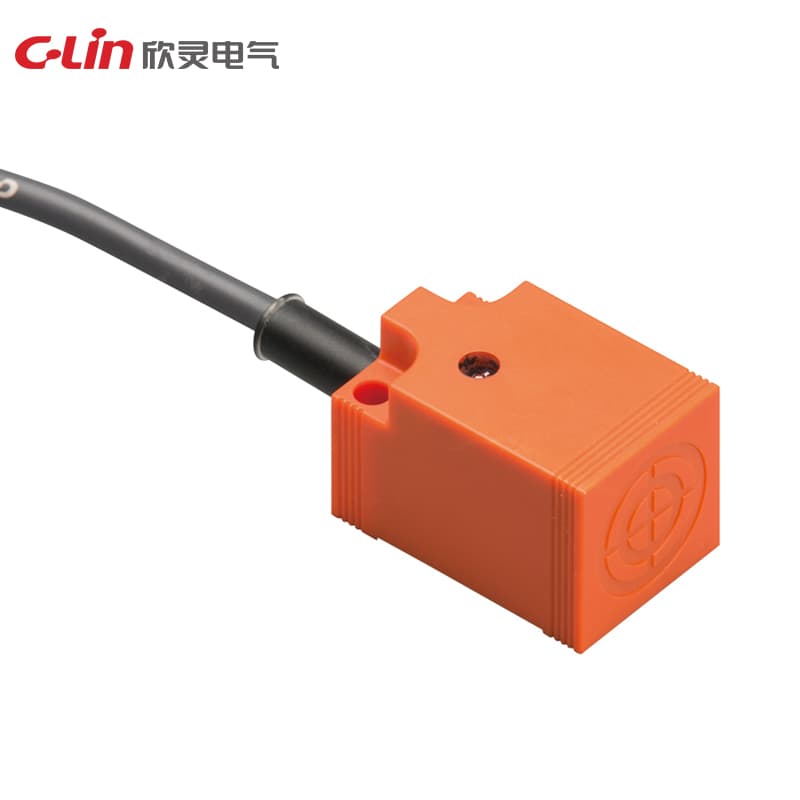

Inductive Sensor LJE/LJE-W ISeries

Model Number: LJE25

LJELJE-W10LJE-W5LJE17LJE18LJE25LJE30
Request Quote

Technical Specifications

SpecificationLJE17
Humidity rangeOperating, storage: 35 to 95% (no condensation)
Supply VoltageDC (NPN,PNP) type: DC10 ~ 30V; DC 2-wire type: DC10 ~ 30V; AC 2-wire type: AC90 ~ 250V
Indicator lightAction indicator green
Residual VoltageNPN type: ≤ 1.5V; PNP type: ≤ 2.5V; DC 2-wire type: ≤ 4V; AC 2-wire type: 7V
Setting distance0 ~ 4.25mm
Operating current≤ 200mA
Temperature rangeOperating: -25 to +70°C (no icing, condensation): Storage: -40 to +85°C (no icing, condensation)
Detection distance5mm
Protection circuitDC type: Polarity, Overcurrent protection; AC type: Surge Absorption
Standard test objects20*20*1mm Iron
