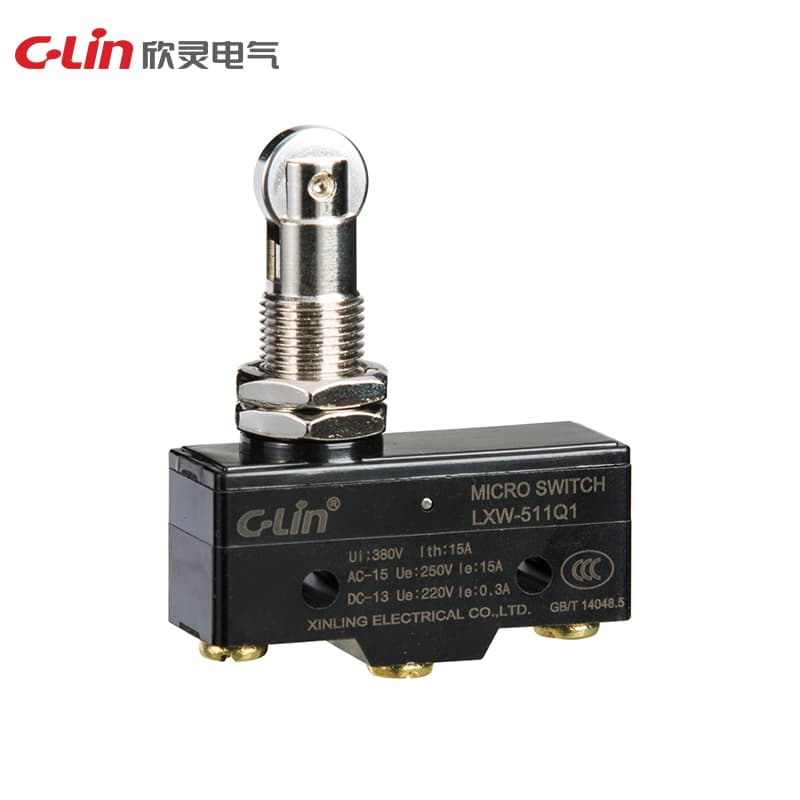

Micro Switch LXW-5 Series

Name: Micro Switch LXW-5 Series
Brand: C-Lin
SKU: LXW-511Q1

Model Number: LXW-511Q1

LXW-5 LXW-511D LXW-511G1 LXW-511G2 LXW-511N1 LXW-511N2LXW-511Q1LXW-511Q2 LXW-511Z LXW-515B LXW-515C LXW-515R LXW-515S LXW-515X

Operation speed: 0.01mm~1m/s Action frequency: Mechanical: 240 times/min; Electrical: 20 times/min Contact resistance: 15mΩ or less (initial value) Insulation resistance: 100MΩ or more (below DC500V) Heating current: Ith: 15A Electrical parameters: AC380V, AC220V/1.5A; DC220V/0.3A Withstand voltage: 1890V between non-connected terminals, 50/60Hz 1min 2500V between terminals and non-charged metal, 50/60Hz 1min 2500V between terminals and ground, 50/60Hz 1min Vibration: Malfunction durability: 10Hz~55Hz, 1.5m

Request Quote

Technical Specifications

Impact	Mechanical durability： 1000m/S2; Malfunction durability：300m/S2
Vibration	Malfunction durability：10Hz~55Hz, 1.5mm Double amplitude
Specification	LXW-511D
Heating current	Ith：15A
Operation speed	0.01mm~1m/s
Action frequency	Mechanical：240 times/min; Electrical：20 times/min
Usage environment	Temperature： -10℃~+80℃ (no freezing); Humidity：<90%RH
Withstand voltage	1890V between non-connected terminals, 50/60Hz 1min 2500V between terminals and non-charged metal, 50/60Hz 1min 2500V between terminals and ground, 50/60Hz 1min
Contact resistance	15mΩ or less (initial value)
Electrical parameters	AC380V, AC220V/1.5A; DC220V/0.3A
Insulation resistance	100MΩ or more (below DC500V)
