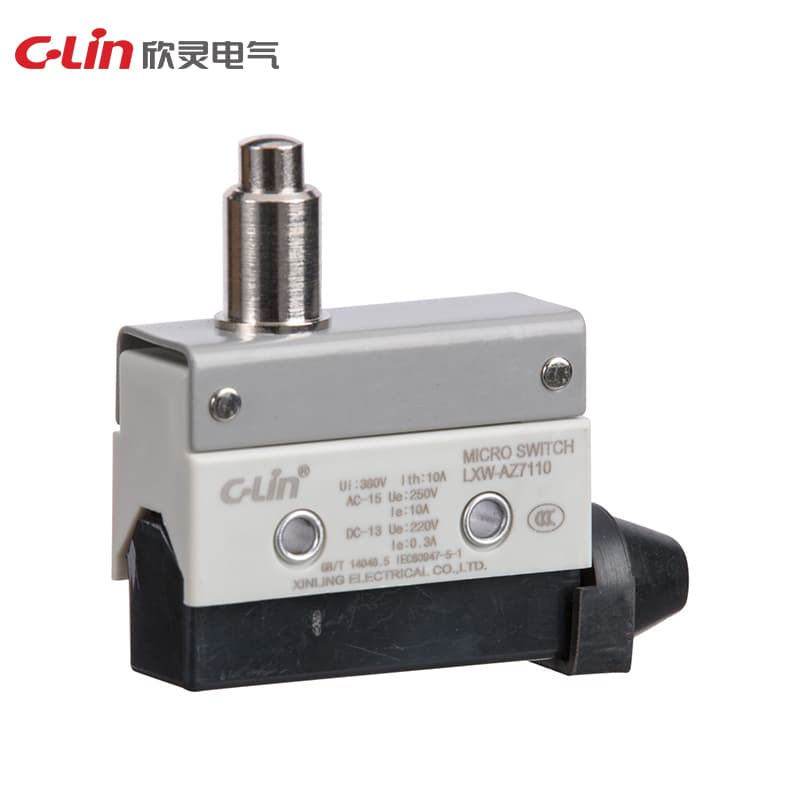

Micro Switch LXW-AZ Series

Name: Micro Switch LXW-AZ Series
Brand: C-Lin
SKU: LXW-AZ7110

Model Number: LXW-AZ7110

LXW-AZ7100LXW-AZ7110LXW-AZ7120 LXW-AZ7121 LXW-AZ7124 LXW-AZ7140 LXW-AZ7141 LXW-AZ7144 LXW-AZ7310 LXW-AZ7311 LXW-AZ7312

Operation speed: 0.5mm~0.5m/s Action frequency: Mechanical: 120 times/min; Electrical: 20 times/min Contact resistance: 50mΩ or less (initial value) Insulation resistance: 100MΩ or more (below DC500V) Heating current: Ith: 10A Electrical parameters: AC380V, AC220V/1A; DC220V/0.3A Withstand voltage: 1890V between non-connected terminals, 50/60Hz 1min 2500V between terminals and non-charged metal, 50/60Hz 1min 2500V between terminals and ground, 50/60Hz 1min Vibration: Malfunction durability: 10Hz~55Hz, 1.5mm

Request Quote

Technical Specifications

Impact	Mechanical durability：1000m/S2; Malfunction durability：300m/S2
Vibration	Malfunction durability：10Hz~55Hz, 1.5mm Double amplitude
Specification	LXW-AZ
Heating current	Ith：10A
Operation speed	0.5mm~0.5m/s
Action frequency	Mechanical：120 times/min; Electrical：20 times/min
Protection level	IP63
Usage environment	Temperature：-10℃~+80℃ (no freezing); Humidity： <90%RH
Withstand voltage	1890V between non-connected terminals, 50/60Hz 1min 2500V between terminals and non-charged metal, 50/60Hz 1min 2500V between terminals and ground, 50/60Hz 1min
Contact resistance	50mΩ or less (initial value)
Electrical parameters	AC380V, AC220V/1A; DC220V/0.3A
Insulation resistance	100MΩ or more (below DC500V)
