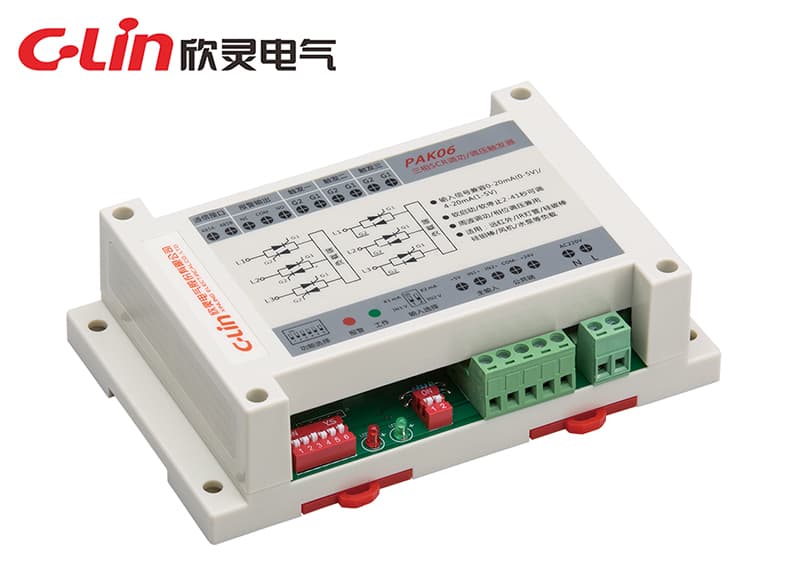

Three-Phase SCR Power/Voltage Regulating Controller PAK06 Series
Model Number: PAK06
Rated voltage: three-phase 380VAC (three-phase three-wire) Trigger current: 300mA can trigger thyristors below 1000A Auxiliary power supply: PCB board working power supply, AC220V±10% 50/60Hz Control terminal L/N, N line must be connected to the neutral line Input signal: control signal (0-5VDC, 0-20mA, 1-5VDC, 4-20mA) optional Use environment: temperature -20-55℃; humidity below 90%RH Withstand voltage: insulation withstand voltage AC2500V/1 minute Input/output isolation voltage AC2000V Alarm output: a gro
Request QuoteTechnical Specifications
| Model | PAK06 |
| Dimension | 145×90×40mm |
| Alarm output | 1 set of NO/NC output point (1A/250VAC) |
| Input signal | Control signal (0-5VDC, 0-20mA, 1-5VDC, 4-20mA) optional |
| Rated voltage | 3-phase 380VAC (3-phase 3-wire) |
| Start-stop time | Soft start and soft stop time 1-41s adjustable |
| Trigger current | 300mA can trigger thyristor of 1000A or below |
| Usage environment | Temperature -10-55°C, humidity below 99% RH |
| Protection function | Load phase loss detection, auxiliary power supply L/N reversed connection |
| Auxiliary power supply | PCB board operation power supply AC220V ± 10% 50/60Hz control terminal. The L/N and N wires must be connected to the neutral wire |
| Withstand voltage strength | Insulation withstand voltage AC2500V/1 min, input/output isolation voltage AC2000V |
