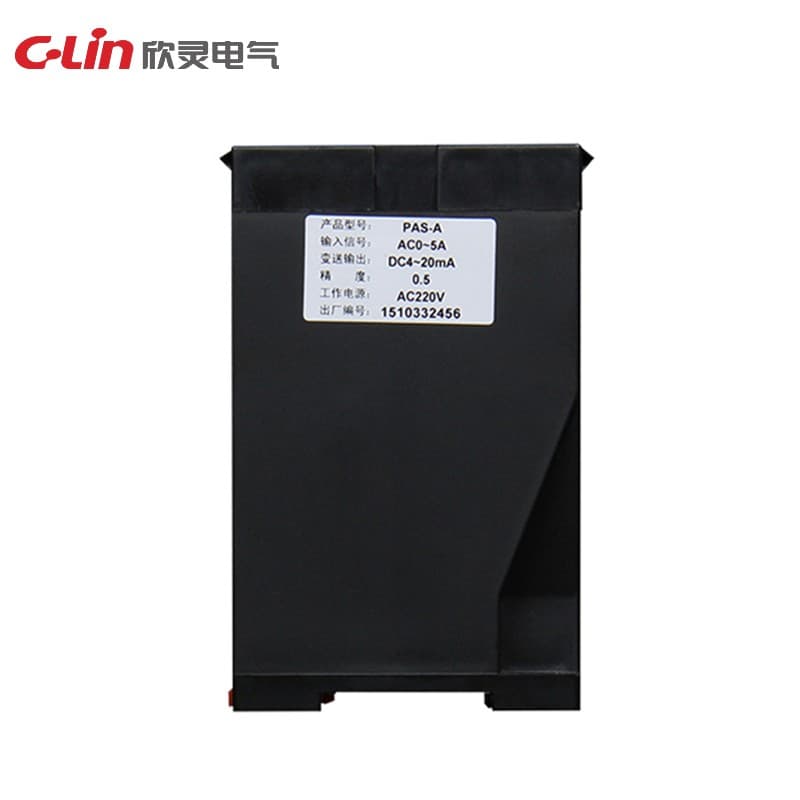

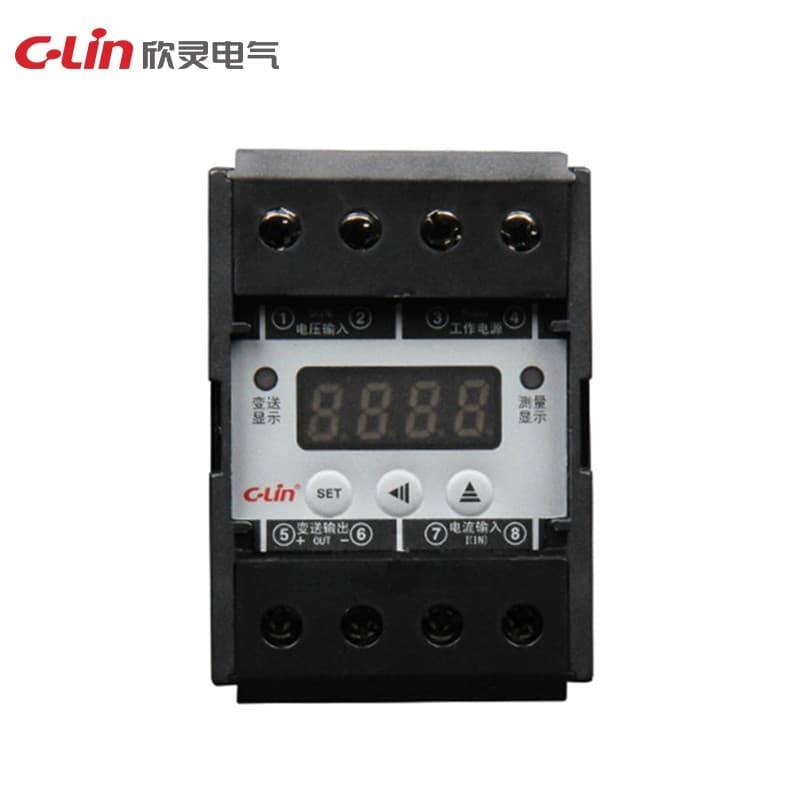

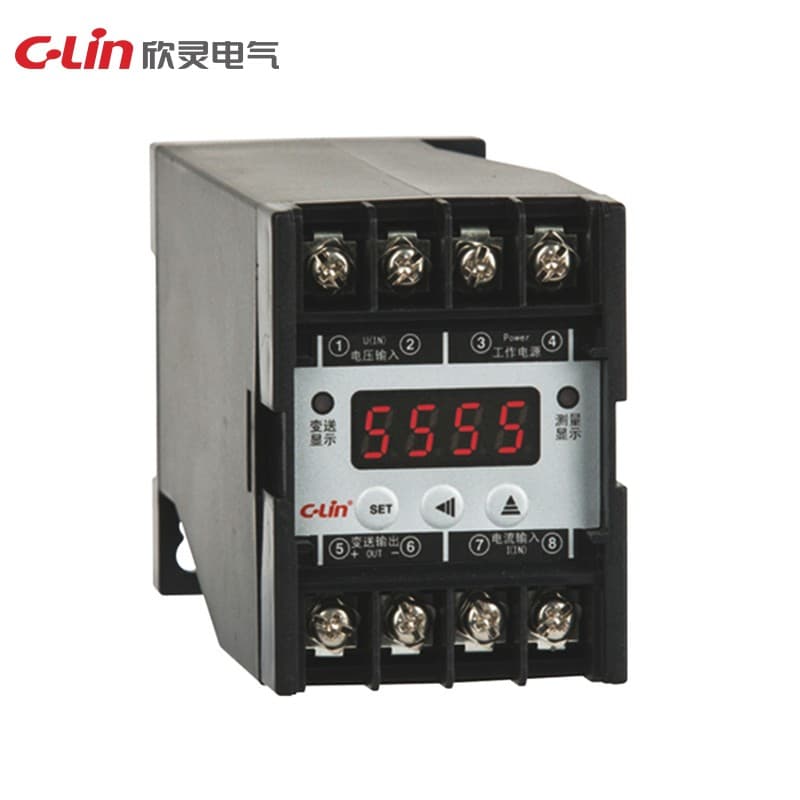

Ac Current/Voltage Transmitter PAS Series

Name: Ac Current/Voltage Transmitter PAS Series
Brand: C-Lin
SKU: PAS

Model Number: PAS

Measuring signal: AC current (AC0~5A); AC voltage (AC0~500V) Other specifications can be customized Measurement error: ≤0.5 level Display mode: Manually switch to display the measured primary power or the output power Display range: Primary power 0~9999 can be freely set Transmitter output: DC0~10mA/0~20mA/4~20mA (freely set) Load impedance: ≤350Ω Working power supply: AC220V, AC380V Dimensions: 79×50×105mm Installation method: Standard DIN rail installation, fixed installation Typical applications: Used fo

Request Quote

Technical Specifications

Model	PAS
Dimension	79×50×105mm
Display mode	It can be manually switched to display the measured primary electric quantity or transmitting output electric quantity
Display range	Primary electric quantity 0~9999 settable
Load impedance	≤ 350Ω
Supply voltage	AC220V or AC380V
Measurement error	≤ 0.5 class
Measurement signal	AC current (AC0~5A)

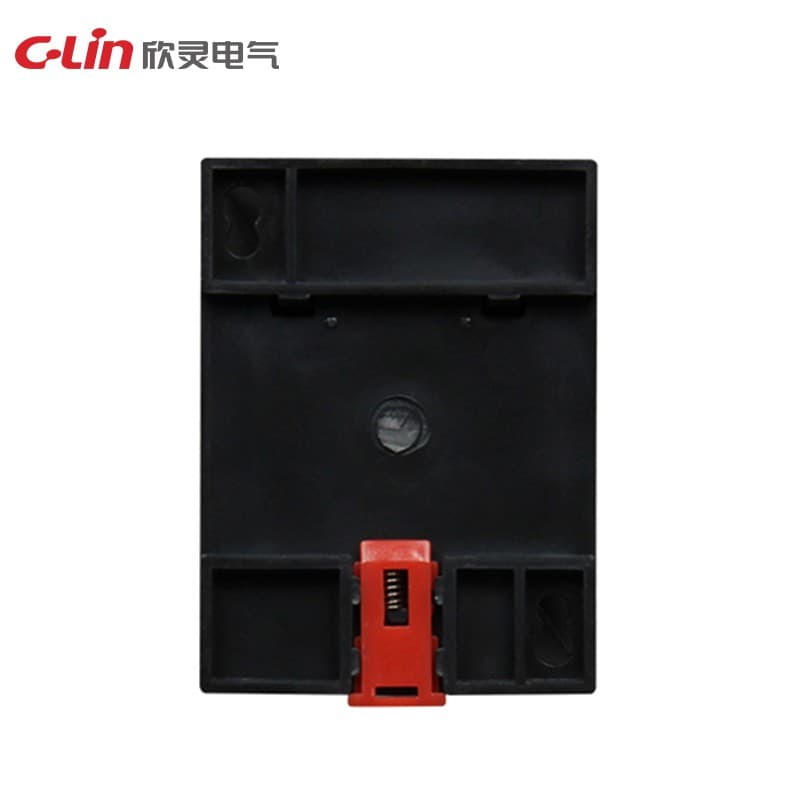

Installation method	Standard DIN rail installation, fixed installation
Transmission output	DC0~10mA/0~20mA, 4~20mA (settable)
Typical application	Used for isolation and measurement of high current and high voltage transmission in explosion-proof control boxes, distribution
