Technical Specifications
| Material | Nickel plated brass |

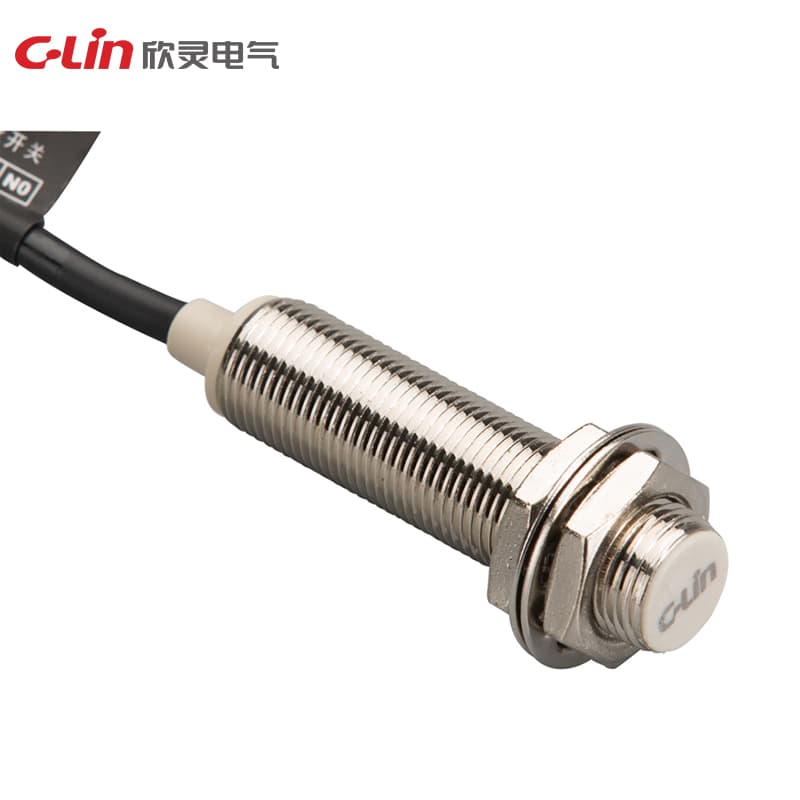

| Specification | SJM12 |
| Humidity range | Operating, storage: 35 to 95% (no condensation) |
| Supply Voltage | DC (NPN,PNP, 2-wire) type: DC6~36V; AC type: AC90~250V |
| Indicator light | Action indicator red |
| Residual Voltage | DC (NPN,PNP) type: ≤ 1.5V; DC 2-wire: ≤ 3V; AC 2-wire: ≤ 7V |
| Setting distance | 0 ~ 8mm |
| Operating current | ≤ 200mA |
| Temperature range | Operating: -25 to +70°C (no icing, condensation): Storage: -40 to +85°C (no icing, condensation) |
| Detection distance | 10mm |
| Protection circuit | Surge absorption protection, overcurrent protection, polarity protection |
| Standard test objects | Permanent magnet φ12×2mm |
