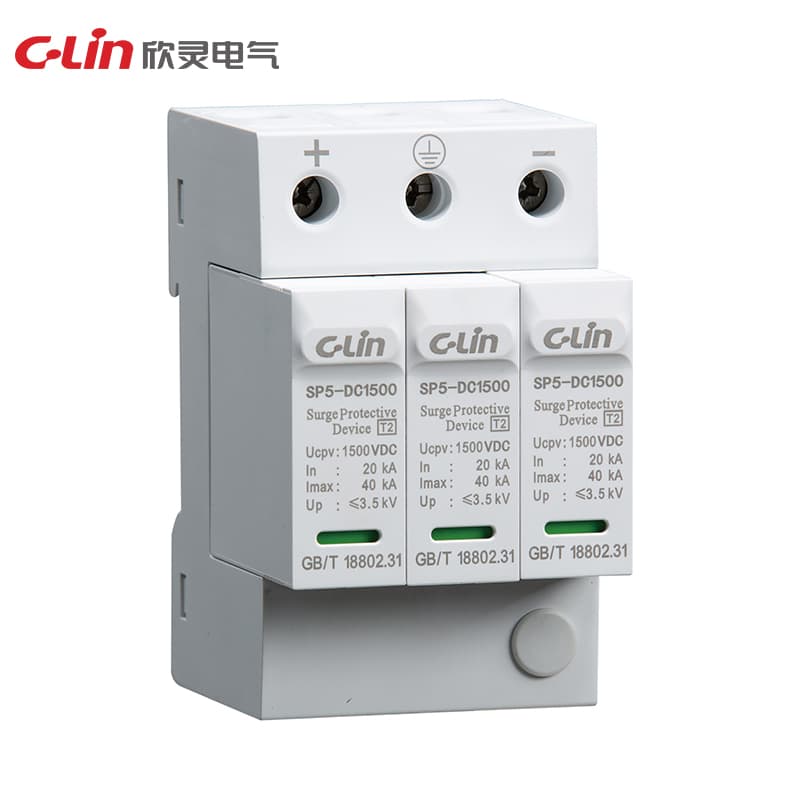

Surge Protective Device SP5 Series
Model Number: SP5-DC
SP5SP5-DC
Rated working voltage (Un): 230V/400V Nominal discharge current In (8/20μs): 5kA, 10kA, 20kA, 30kA, 40kA Maximum discharge current Imax (8/20μs): 10kA, 20kA, 40kA, 60kA, 80kA Maximum continuous working voltage (Uc): 275V, 320V, 385V, 460V Protection level (Up) kV≤ 1.0 ~≤ 2.4 Leakage current (75%Uc1mA) <20μA Test classification: Class II Protection level: IP20 Recommended fuse or circuit breaker: 10A~63A Installation method: 35mm standard rail
Request QuoteTechnical Specifications
| Phase | 1P 2P 3P 4P |
| Dimensions | 91×18×71,91×36×71,91×54×71,91×72×71 |
| Installation | 35mm Standard Rail |
| Specification | SP5 Series |
| Number of poles | 1P, 2P, 3P |
| Protection level | IP20 |
| Installation method | 35mm standard rail |
| Test classification | 2 |
| Protection level (Up) | kV ≤ 2.4, ≤ 3.0, ≤ 3.5, ≤ 4.5 |
| Protection level (Up)kV | < 1.0 < 1.2 < 1.2 < 1.5 / < 1.2 < 1.3 < 1.5 < 1.8 / < 1.5 < 1.5 < 1.8 < 2.0 / < 1.6 < 1.8 < 2.0 < 2.2 / < 1.8 < 2.0 < 2.2 < 2.4 |
| Leakage current (75%Uc1mA) | < 20μA |
| Rated working voltage (Un) | 230V/400V |
| Leakage current (75% Uc1mA) | < 20μA |
| Recommended Fuse or Circuit Breaker | 10A~63A |
| Nominal discharge current In (8/20μs) | 20kA |
| Maximum continuous working voltage (Uc) | 600V, 800V, 1000V, 1500V |
| Maximum discharge current Imax (8/20μs) | 40kA |
| Maximum Continuous Operating Voltage (Uc) | 275V,320V,385V,460V |
