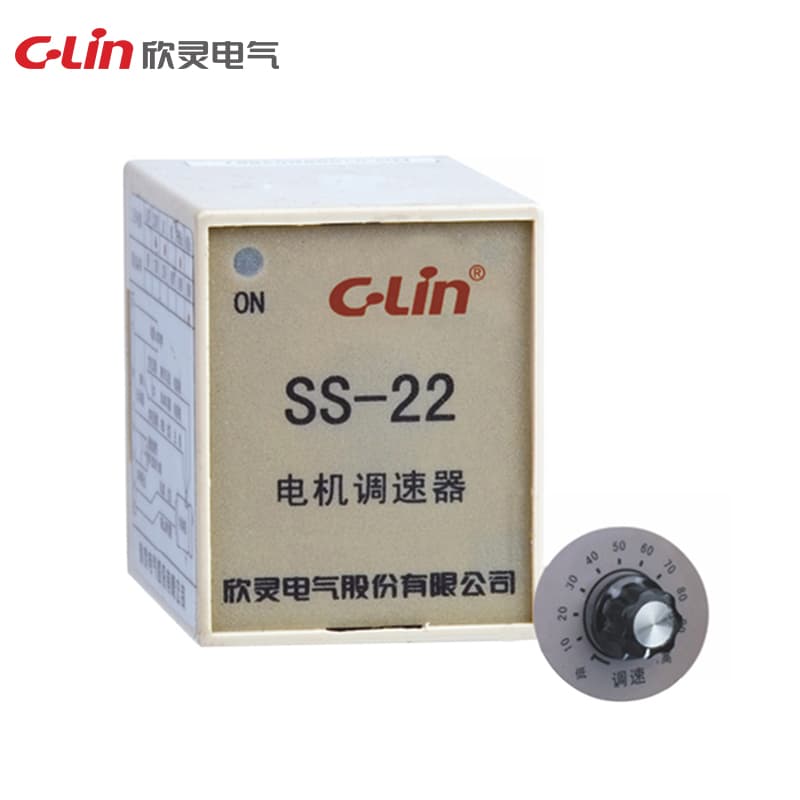

Small AC Motor Speed Regulator SS Series

Name: Small AC Motor Speed Regulator SS Series
Brand: C-Lin
SKU: SS-22

Model Number: SS-22

Working power supply: AC220V 50/60Hz Rated power: 15W, 25W, 40W, 60W, 90W, 120W, 180W, 200W Speed range: 90~1400r/min 50Hz; 90~2800r/min 60Hz Control mode: forward/reverse selectable Applicable scope: YYDJ, YCJT, YYCJ, YCJFK series five-wire motor with speed measuring line Dimensions: 57×40×78mm Installation method: 35mm guide rail Function description: With soft start and stepless speed regulation function

Request Quote

Technical Specifications

Model	SS-22
Dimension	57×40×78mm
Rated power	15W, 25W, 40W, 60W, 90W 120W, 180W, 200W
Control mode	Forward/reverse optional
Supply voltage	AC220V 50/60Hz
Application scope	YYDJ, YCJT, YYCJ, YCJFK series five-wire motors with speed measuring wire
Installation method	35mm DIN rail
Speed regulation range	90~1400r/min 50Hz; 90~2800r/min 60Hz
