C-Lin

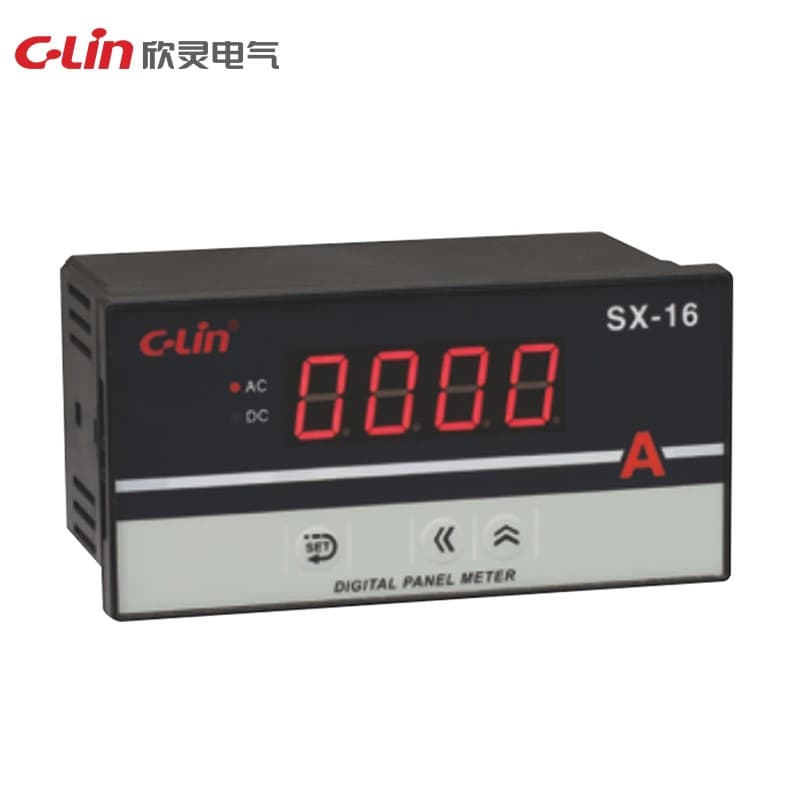

Digital Current And Voltage Meter SX Series

Name: Digital Current And Voltage Meter SX Series
Brand: C-Lin
SKU: SX-16

Model Number: SX-16

SX-16SX-42 SX-48 SX-6L SX-72 SX-96 SX-96B SX72-S

Input signal: AC current, voltage; DC current, voltage Measurement error: ≤1.0 level Display mode: 0.56-inch digital tube Range: Range: 0-9999, arbitrarily set Working power supply: AC220V, AC380V Dimensions: 80×80×72mm Opening size: 76×76mm Installation method: panel type Typical application: used for electrical signal measurement in calibration benches, distribution cabinets, complete sets of cabinets, etc.

Request Quote

Technical Specifications

Model	SX-16
Range	0~9999 settable
Dimension	80×80×72mm
Hole size	76×76mm
Dimensions	80×80×72mm
Display mode	0.56 inch digital tube
Input signal	AC current and voltage, DC current and voltage
Opening size	76×76mm
Specification	SX-16
Supply voltage	AC220V or AC380V
Measurement error	≤ 1.0 class
Installation method	Panel type
Typical application	Used for electrical signal measurement of calibration tables, distribution cabinets, switchgear assemblies, etc.
Working power supply	AC220V, AC380V
